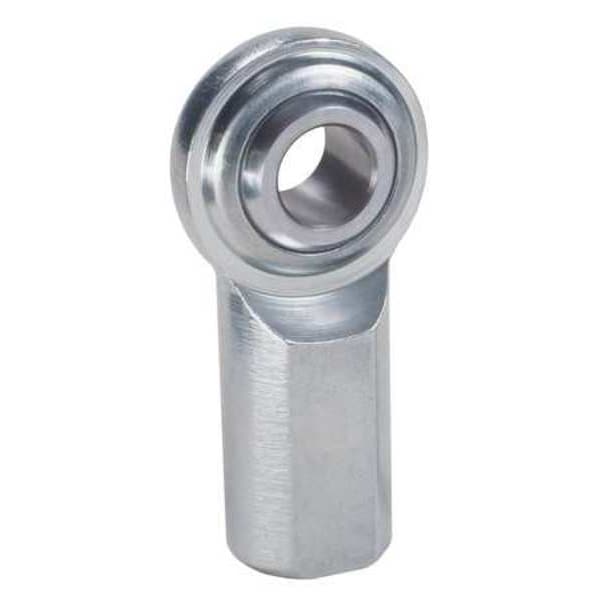

Home / Female, Rod End, LH, 8/8.065mm
Female, Rod End, LH, 8/8.065mm
Female, Rod End, LH, 8/8.065mm

Female, Rod End, LH, 8/8.065mm

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Metric, Bore Diameter 8 mm, Head Outside Diameter 22.25 mm, Head Width 8 mm, Shank Thread Length 17 mm, Shank Thread Size M8-1.25, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 15.88 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 12 mm, Maximum Ball Swivel 28 Degrees

    graingerSKU: 39N428, mscSKU: , zoro_no: G0100488, mongo_id: 65bbe88b22d7a989a98fdda0

Web Price
$10.99 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
15.88 mm
Alloy Steel
52100
52100 Steel Spherical Ball
8 mm
+0.065/-0.012 in
Follows SAE Specification J1120
China
M8 x 1.25
8/8.065mm
22.25 mm
36 mm
17 mm
47.125 mm
12 mm
22.25 mm
8 mm
Low Carbon
Carbon Steel
Chrome Plated
12 mm
8/8.065mm
28 Degrees
28 Degrees
47 1/8 mm
1
Corrosion Resistant
Spherical Rod End
Left Hand
Female
17 mm
M8-1.25
Female Plain
Female Plain
ISO Certified 9001
15,190 N
15,190 N
Metric
Left Hand
M8 X 1.25
Female Plain
