Home / Female Stud Rod End, LH, 7/16-20

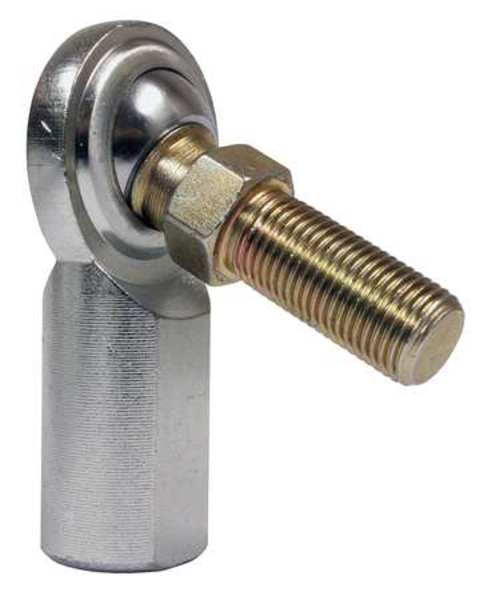

Female Stud Rod End, LH, 7/16-20
Female Stud Rod End, LH, 7/16-20

Female Stud Rod End, LH, 7/16-20

  • Qa1
  • Raw Materials

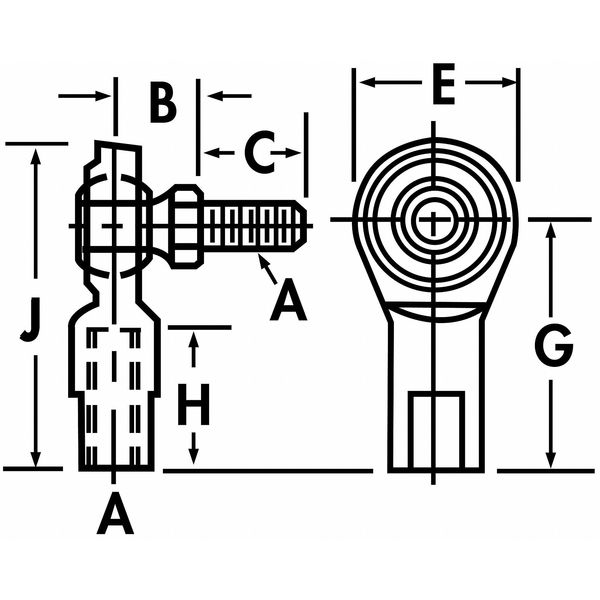

  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 3/4 in, Ball Stud Thread Length 7/8 in, Ball Stud Thread Size 7/16 In.-20, Bore Diameter 7/16 in, Head Outside Diameter 1 1/8 in, Head Width 0.406 in, Shank Thread Length 7/8 in, Shank Thread Size 7/16 In.-20, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.812 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel

    graingerSKU: 20G001, mscSKU: , zoro_no: G0104030, mongo_id: 65bbe94522d7a989a9945943

Web Price
$10.69 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.812 in
Alloy Steel
52100
1 3/4 in
Carbon Steel
Left Hand
7/8 in
7/16-20
52100 Steel Spherical Ball
7/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
7/16-20
0.688 in
1.062 in
1.125 in
1.812 in
0.937 in
2.375 in
1 1/8 in
0.406 in
Carbon Steel
Carbon Steel
Chrome Plated
0.562 in
21 Degrees
21 Degrees
2 3/8 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Female
7/8 in
7/16-20
Female Studded
ISO Certified 9001
7,897 lb
7,897 lbf
1.062 in
Inch
Left Hand
7/16-20
Female Studded
