Home / Female Stud Rod End, SS, LH, 5/16-24

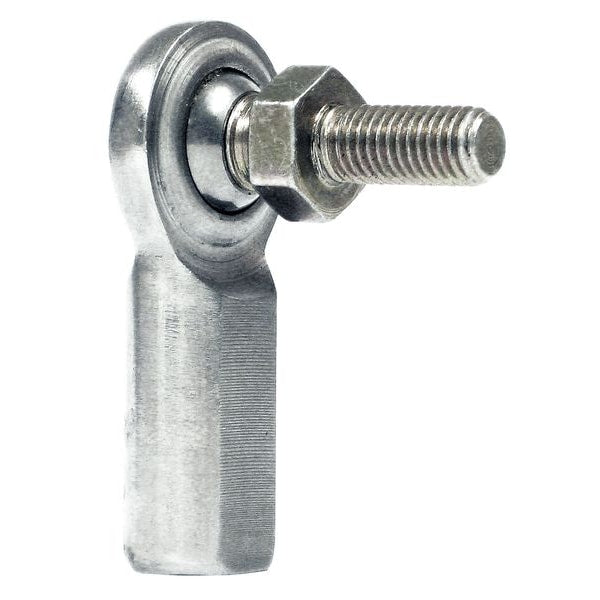

Female Stud Rod End, SS, LH, 5/16-24
Female Stud Rod End, SS, LH, 5/16-24

Female Stud Rod End, SS, LH, 5/16-24

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 3/16 in, Ball Stud Thread Length 9/16 in, Ball Stud Thread Size 5/16 In.-24, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.312 in, Shank Thread Length 5/8 in, Shank Thread Size 5/16 In.-24, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.625 in, Ball Material Stainless Steel, Ball Material Grade 440C, Ball Stud Material Stainless Steel

    graingerSKU: 20G061, mscSKU: , zoro_no: G5652132, mongo_id: 65bbe6be3aaddbd5a904d915

Web Price
$21.56 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
0.625 in
Stainless Steel
440C
1 3/16 in
Stainless Steel
Left Hand
9/16 in
5/16-24
440C Stainless Steel Spherical Ball
5/16 in
+0.0015/-0.0005 in
Follows SAE Specification J1120
China
5/16-24
0.532 in
0.687 in
0.875 in
1.375 in
0.687 in
1.813 in
7/8 in
0.312 in
300 Series Stainless Steel
Stainless Steel
Chrome Plated
0.437 in
22 Degrees
22 Degrees
1 13/16 in
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Female
5/8 in
5/16-24
Female Studded
ISO Certified 9001
3,278 lb
3,278 lbf
0.687 in
Inch
Left Hand
5/16-24
Female Studded
