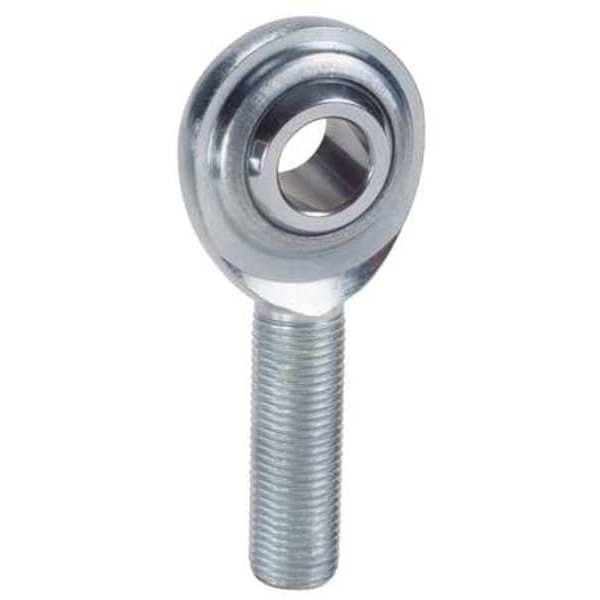

Home / Male Rod End, LH, 3/4-16
Male Rod End, LH, 3/4-16
Male Rod End, LH, 3/4-16

Male Rod End, LH, 3/4-16

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 3/4 in, Head Outside Diameter 1 3/4 in, Head Width 0.593 in, Shank Thread Length 1 3/4 in, Shank Thread Size 3/4 In.-16, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 1.312 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.875 in, Maximum Ball Swivel 24 Degrees

    graingerSKU: 20F990, mscSKU: , zoro_no: G5201384, mongo_id: 65bbe8669a749db82278bad8

Web Price
$16.94 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
1.312 in
Alloy Steel
52100
52100 Steel Spherical Ball
3/4 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
3/4-16
0.750/0.752 in
1.75 in
2.875 in
1.75 in
3.75 in
0.875 in
1 3/4 in
0.593 in
Carbon Steel
Carbon Steel
Chrome Plated
0.875 in
0.750/0.752 in
24 Degrees
24 Degrees
3 3/4 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Male
1 3/4 in
3/4-16
Male Plain
ISO Certified 9001
15,894 lb
15,894 lbf
Inch
Left Hand
3/4-16
Male Plain
