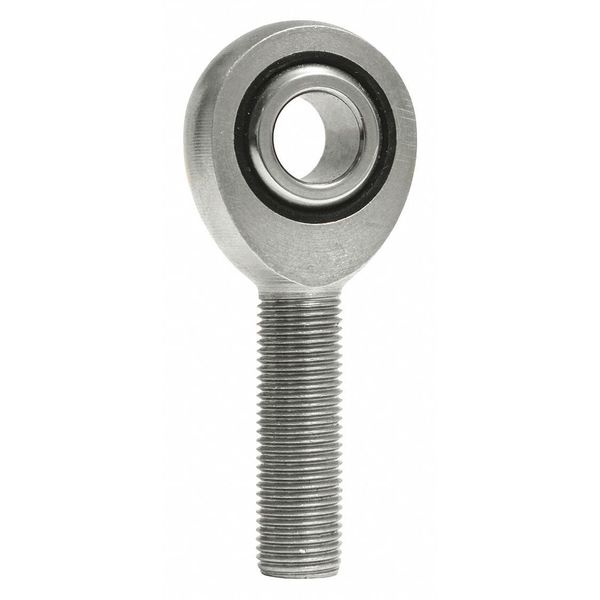

Male Rod End, Nylon/PTFE, RH, 5/8-18
Male Rod End, Nylon/PTFE, RH, 5/8-18

Male Rod End, Nylon/PTFE, RH, 5/8-18

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 5/8 in, Head Outside Diameter 1 1/2 in, Head Width 0.562 in, Shank Thread Length 1 5/8 in, Shank Thread Size 5/8 In.-18, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Low Load, Moderate Oscillation, Ball Diameter 1.125 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.75 in

    graingerSKU: 20F923, mscSKU: , zoro_no: G4426143, mongo_id: 65bbe6363aaddbd5a901448c

Web Price
$14.94 / each
Qty

Product Details

Low Load, Moderate Oscillation
52100 Steel Spherical
1.125 in
Alloy Steel
52100
52100 Steel Spherical Ball
5/8 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
5/8-18
0.625/0.627 in
1.5 in
2.625 in
1.625 in
3.375 in
0.75 in
1 1/2 in
0.562 in
Carbon Steel
Carbon Steel
Chrome Plated
0.75 in
0.625/0.627 in
16 Degrees
16 Degrees
3 3/8 in
1
Nylon/PTFE
Corrosion Resistant, High Wear Resistant, Low Moisture Absorption
Spherical Rod End
Yes
Right Hand
Male
1 5/8 in
5/8-18
Male Plain
ISO Certified 9001
8,300 lb
8,300 lbf
Inch
Right Hand
5/8-18
Male Plain
