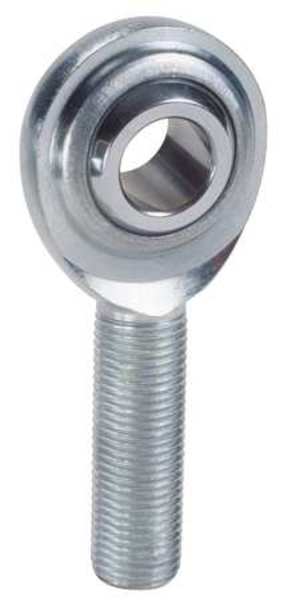

Male Rod End, RH, #10-32
Male Rod End, RH, #10-32

Male Rod End, RH, #10-32

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head Width 0.234 in, Shank Thread Length 3/4 in, Shank Thread Size #10-32, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.437 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.312 in, Maximum Ball Swivel 20 Degrees

    graingerSKU: , mscSKU: , zoro_no: G6080837, mongo_id: 65bbe6143aaddbd5a90060c0

Web Price
$5.31 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.437 in
Alloy Steel
52100
52100 Steel Spherical Ball
3/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
#10-32 in
0.190/0.192 in
0.625 in
1.25 in
0.75 in
1.563 in
0.312 in
5/8 in
0.234 in
Carbon Steel
Carbon Steel
Chrome Plated
0.312 in
0.189/0.191 in
20 Degrees
20 Degrees
1 9/16 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
3/4 in
#10-32
Male Plain
ISO Certified 9001
1,558 lb
1,558 lbf
Inch
Right Hand
#10-32
Male Plain
