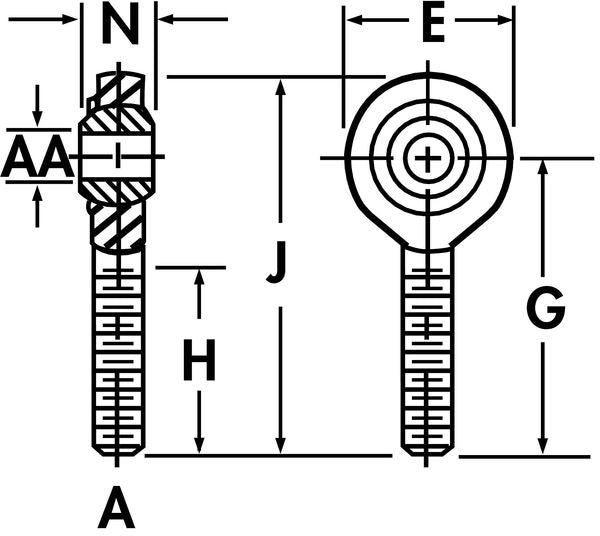

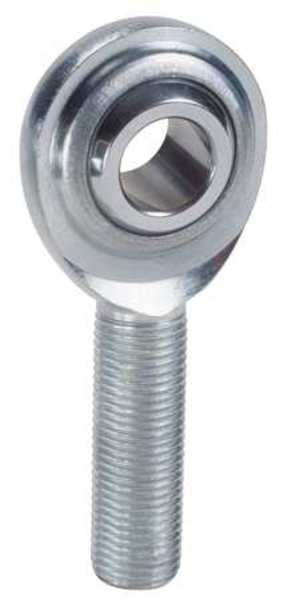

Male Rod End, RH, 7/16-20
Male Rod End, RH, 7/16-20

Male Rod End, RH, 7/16-20

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 7/16 in, Head Outside Diameter 1 1/8 in, Head Width 0.406 in, Shank Thread Length 1 3/8 in, Shank Thread Size 7/16 In.-20, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.812 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.562 in, Maximum Ball Swivel 21 Degrees

    graingerSKU: 20F983, mscSKU: , zoro_no: G4718585, mongo_id: 65bbea2f22d7a989a999bbde

Web Price
$8.36 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.812 in
Alloy Steel
52100
52100 Steel Spherical Ball
7/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
7/16-20
0.4375/0.4395 in
1.125 in
2.125 in
1.375 in
2.688 in
0.562 in
1 1/8 in
0.406 in
Carbon Steel
Carbon Steel
Chrome Plated
0.562 in
0.4375/0.4395 in
21 Degrees
21 Degrees
2 11/16 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
1 3/8 in
7/16-20
Male Plain
ISO Certified 9001
7,897 lb
7,897 lbf
Inch
Right Hand
7/16-20
Male Plain
