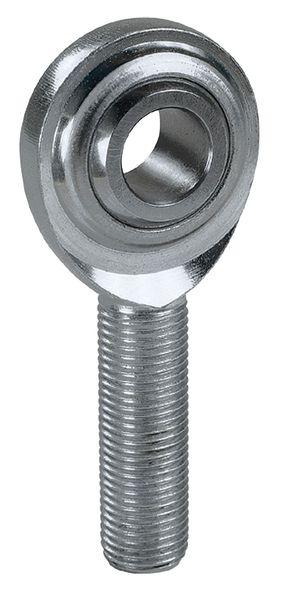

Male Rod End, SS, LH, 5/8-18
Male Rod End, SS, LH, 5/8-18

Male Rod End, SS, LH, 5/8-18

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 5/8 in, Head Outside Diameter 1 1/2 in, Head Width 0.484 in, Shank Thread Length 1 5/8 in, Shank Thread Size 5/8 In.-18, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 1.125 in, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.0015/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.75 in, Maximum Ball Swivel 26 Degrees

    graingerSKU: 20G053, mscSKU: , zoro_no: G5497825, mongo_id: 65bbea0522d7a989a998d684

Web Price
$58.56 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
1.125 in
Stainless Steel
440C
440C Stainless Steel Spherical Ball
5/8 in
+0.0015/-0.0005 in
Follows SAE Specification J1120
China
5/8-18
0.625/0.627 in
1.5 in
2.625 in
1.625 in
3.375 in
0.75 in
1 1/2 in
0.484 in
300 Series Stainless Steel
Stainless Steel
Chrome Plated
0.75 in
0.625/0.627 in
26 Degrees
26 Degrees
3 3/8 in
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Male
1 5/8 in
5/8-18
Male Plain
ISO Certified 9001
8,200 lb
8,200 lbf
Inch
Left Hand
5/8-18
Male Plain
