Home / Male, SS/PTFE Race Rod End, LH, 10/10.065mm

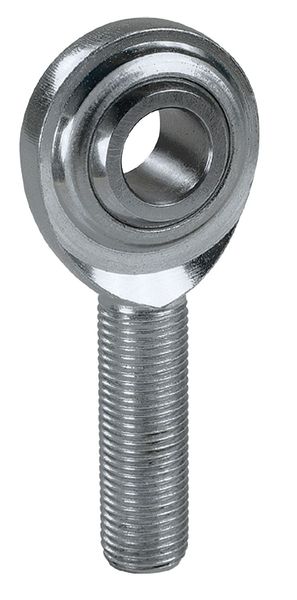

Male, SS/PTFE Race Rod End, LH, 10/10.065mm
Male, SS/PTFE Race Rod End, LH, 10/10.065mm

Male, SS/PTFE Race Rod End, LH, 10/10.065mm

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Metric, Bore Diameter 10 mm, Head Outside Diameter 27 mm, Head Width 9.5 mm, Shank Thread Length 29 mm, Shank Thread Size M10-1.5, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 19.05 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 14 mm, Maximum Ball Swivel 26 Degrees

    graingerSKU: 39N501, mscSKU: , zoro_no: G5678391, mongo_id: 65bbea2f22d7a989a999bbcf

Web Price
$27.49 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
19.05 mm
Stainless Steel
440C
440C SS Spherical Ball
10 mm
+0.065/-0.012 in
Follows SAE Specification J1120
China
M10 x 1.5
10/10.065mm
27 mm
48 mm
29 mm
61.5 mm
14 mm
27 mm
9.5 mm
300 Series Stainless Steel
Stainless Steel
Chrome Plated
14 mm
10/10.065mm
26 Degrees
26 Degrees
61 1/2 mm
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Male
29 mm
M10-1.5
Male Plain
ISO Certified 9001
14,144 N
14,144 N
Metric
Left Hand
M10 x 1.5
Male Plain
