Home / Male, SS/PTFE Race Rod End, LH, 6/6.065mm

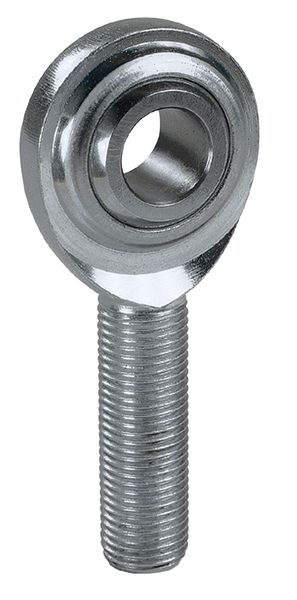

Male, SS/PTFE Race Rod End, LH, 6/6.065mm
Male, SS/PTFE Race Rod End, LH, 6/6.065mm

Male, SS/PTFE Race Rod End, LH, 6/6.065mm

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Metric, Bore Diameter 6 mm, Head Outside Diameter 19 mm, Head Width 6.25 mm, Shank Thread Length 22 mm, Shank Thread Size M6-1.0, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 12.7 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 9 mm, Maximum Ball Swivel 23 Degrees

    graingerSKU: 39N496, mscSKU: , zoro_no: G5658432, mongo_id: 65bbe8d822d7a989a991a84b

Web Price
$21.74 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
12.7 mm
Stainless Steel
440C
440C SS Spherical Ball
6 mm
+0.065/-0.012 in
Follows SAE Specification J1120
China
M6 x 1.0
6/6.065mm
19 mm
36 mm
22 mm
45.5 mm
9 mm
19 mm
6.25 mm
300 Series Stainless Steel
Stainless Steel
Chrome Plated
9 mm
6/6.065mm
23 Degrees
23 Degrees
45 1/2 mm
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Male
22 mm
M6-1.0
Male Plain
ISO Certified 9001
6,093 N
6,093 N
Metric
Left Hand
M6 x 1.0
Male Plain
