Home / Male, SS/PTFE Race Rod End, RH, 8/8.065mm

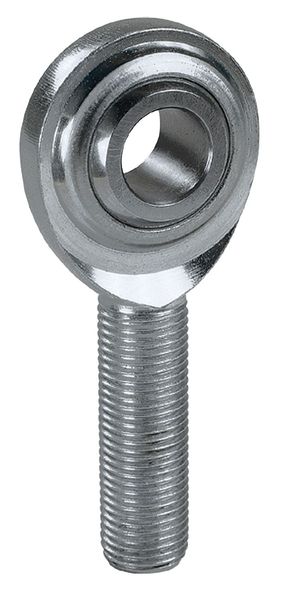

Male, SS/PTFE Race Rod End, RH, 8/8.065mm
Male, SS/PTFE Race Rod End, RH, 8/8.065mm

Male, SS/PTFE Race Rod End, RH, 8/8.065mm

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Metric, Bore Diameter 8 mm, Head Outside Diameter 22.25 mm, Head Width 8 mm, Shank Thread Length 25 mm, Shank Thread Size M8-1.25, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 15.88 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 12 mm, Maximum Ball Swivel 28 Degrees

    graingerSKU: 39N497, mscSKU: , zoro_no: G5657522, mongo_id: 65bbe8fd22d7a989a9928f09

Web Price
$23.74 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
15.88 mm
Stainless Steel
440C
440C SS Spherical Ball
8 mm
+0.065/-0.012 in
Follows SAE Specification J1120
China
M8 x 1.25
8/8.065mm
22.25 mm
42 mm
25 mm
53.125 mm
12 mm
22.25 mm
8 mm
300 Series Stainless Steel
Stainless Steel
Chrome Plated
12 mm
8/8.065mm
28 Degrees
28 Degrees
53 1/8 mm
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
25 mm
M8-1.25
Male Plain
ISO Certified 9001
9,118 N
9,118 N
Metric
Right Hand
M8 x 1.25
Male Plain
