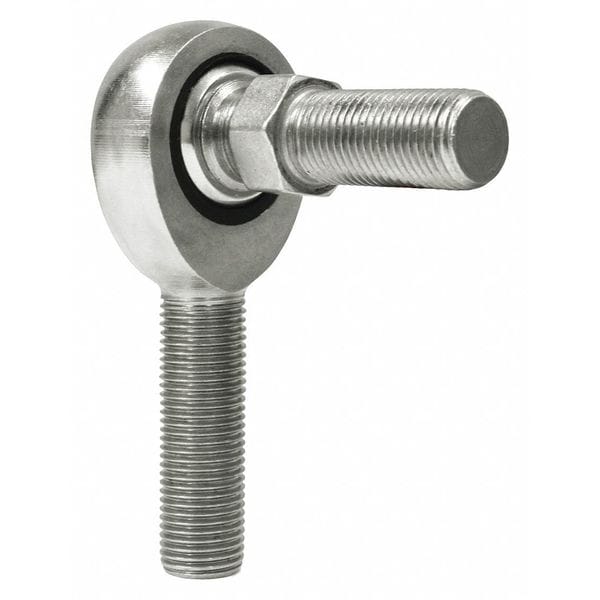

Home / Male Stud Rod End, Nylon/PTFE, LH, 7/16-20
Male Stud Rod End, Nylon/PTFE, LH, 7/16-20
Male Stud Rod End, Nylon/PTFE, LH, 7/16-20

Male Stud Rod End, Nylon/PTFE, LH, 7/16-20

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 3/4 in, Ball Stud Thread Length 7/8 in, Ball Stud Thread Size 7/16 In.-20, Bore Diameter 7/16 in, Head Outside Diameter 1 1/8 in, Head Width 0.437 in, Shank Thread Length 1 3/8 in, Shank Thread Size 7/16 In.-20, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Low Load, Moderate Oscillation, Ball Diameter 0.812 in, Ball Material Alloy Steel, Ball Material Grade 52100

    graingerSKU: 20F952, mscSKU: , zoro_no: G4426405, mongo_id: 65bbe6be3aaddbd5a904d910

Web Price
$9.86 / each
Qty

Product Details

Low Load, Moderate Oscillation
52100 Steel Spherical
0.812 in
Alloy Steel
52100
1 3/4 in
Carbon Steel
Left Hand
7/8 in
7/16-20
52100 Steel Spherical Ball
7/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
7/16-20
0.688 in
1.062 in
1.125 in
2.125 in
1.375 in
2.688 in
1 1/8 in
0.437 in
Carbon Steel
Carbon Steel
Chrome Plated
0.562 in
14 Degrees
14 Degrees
2 11/16 in
1
Nylon/PTFE
Corrosion Resistant, High Wear Resistant, Low Moisture Absorption
Spherical Rod End
Yes
Left Hand
Male
1 3/8 in
7/16-20
Male Studded
ISO Certified 9001
5,350 lb
5,350 lbf
1.062 in
Inch
Left Hand
7/16-20
Male Studded
