Home / Male Stud Rod End, Nylon/PTFE, RH, 5/16-24

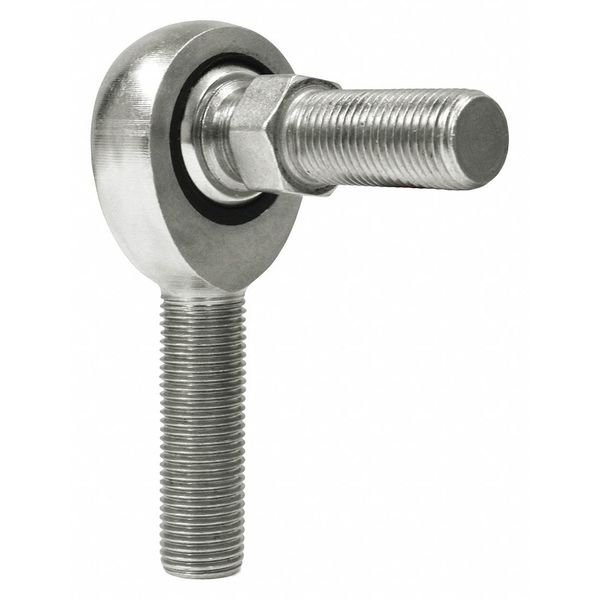

Male Stud Rod End, Nylon/PTFE, RH, 5/16-24
Male Stud Rod End, Nylon/PTFE, RH, 5/16-24

Male Stud Rod End, Nylon/PTFE, RH, 5/16-24

  • Qa1
  • Raw Materials

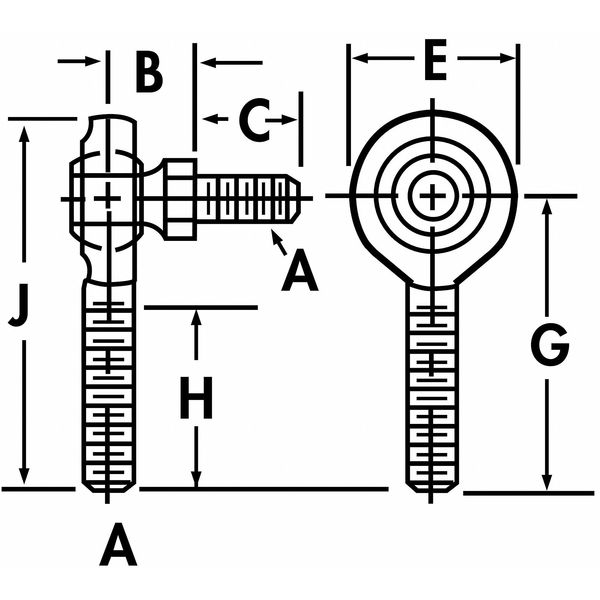

  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 3/16 in, Ball Stud Thread Length 9/16 in, Ball Stud Thread Size 5/16 In.-24, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.344 in, Shank Thread Length 1 1/4 in, Shank Thread Size 5/16 In.-24, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Low Load, Moderate Oscillation, Ball Diameter 0.625 in, Ball Material Alloy Steel, Ball Material Grade 52100

    graingerSKU: 20F947, mscSKU: , zoro_no: G4426353, mongo_id: 65bbe8d822d7a989a991a84f

Web Price
$10.36 / each
Qty

Product Details

Low Load, Moderate Oscillation
52100 Steel Spherical
0.625 in
Alloy Steel
52100
1 3/16 in
Carbon Steel
Right Hand
9/16 in
5/16-24
52100 Steel Spherical Ball
5/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
5/16-24
0.532 in
0.687 in
0.875 in
1.875 in
1.25 in
2.313 in
7/8 in
0.344 in
Carbon Steel
Carbon Steel
Chrome Plated
0.437 in
14 Degrees
14 Degrees
2 5/16 in
1
Nylon/PTFE
Corrosion Resistant, High Wear Resistant, Low Moisture Absorption
Spherical Rod End
Yes
Right Hand
Male
1 1/4 in
5/16-24
Male Studded
ISO Certified 9001
2,740 lb
2,740 lbf
0.687 in
Inch
Right Hand
5/16-24
Male Studded
