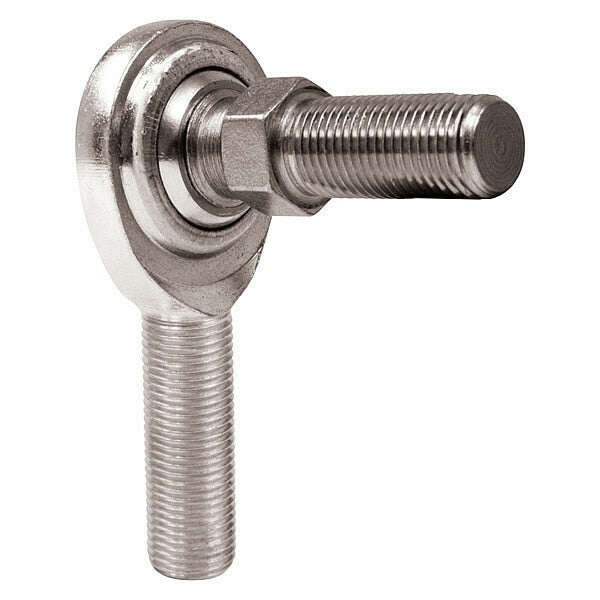

Male Stud Rod End, RH, 3/4-16
Male Stud Rod End, RH, 3/4-16

Male Stud Rod End, RH, 3/4-16

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 3 in, Ball Stud Thread Length 1 5/8 in, Ball Stud Thread Size 3/4 In.-16, Bore Diameter 3/4 in, Head Outside Diameter 1 3/4 in, Head Width 0.593 in, Shank Thread Length 1 3/4 in, Shank Thread Size 3/4 In.-16, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 1.312 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel

    graingerSKU: 20G022, mscSKU: , zoro_no: G5575832, mongo_id: 65bbe9db22d7a989a997f148

Web Price
$28.94 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
1.312 in
Alloy Steel
52100
3 in
Carbon Steel
Right Hand
1 5/8 in
3/4-16
52100 Steel Spherical Ball
3/4 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
3/4-16
1.188 in
1.812 in
1.75 in
2.875 in
1.75 in
3.75 in
1 3/4 in
0.593 in
Carbon Steel
Carbon Steel
Chrome Plated
0.875 in
24 Degrees
24 Degrees
3 3/4 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
1 3/4 in
3/4-16
Male Studded
ISO Certified 9001
15,894 lb
15,894 lbf
1.812 in
Inch
Right Hand
3/4-16
Male Studded
