Home / Male Stud Rod End, SS, RH, 5/16-24

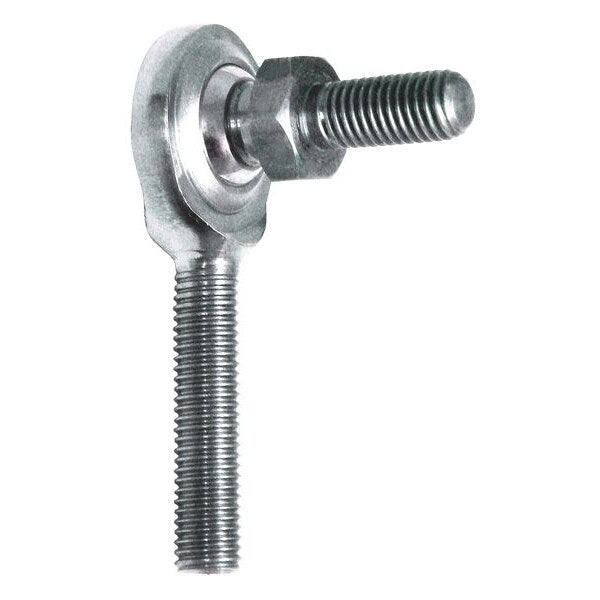

Male Stud Rod End, SS, RH, 5/16-24
Male Stud Rod End, SS, RH, 5/16-24

Male Stud Rod End, SS, RH, 5/16-24

  • Qa1
  • Raw Materials

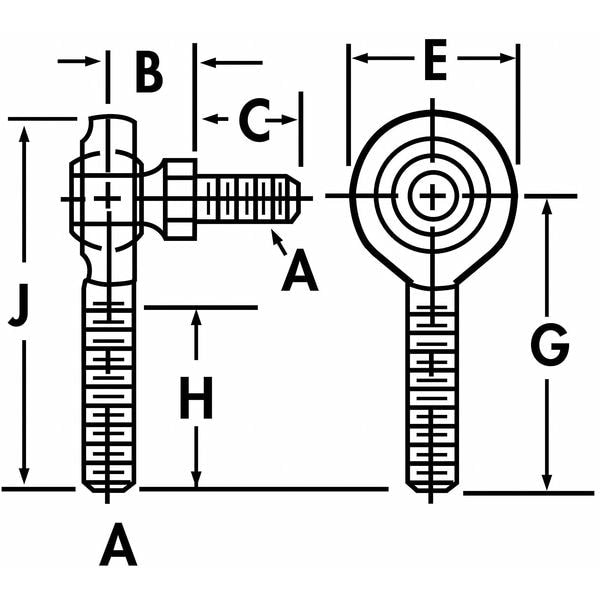

  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 3/16 in, Ball Stud Thread Length 9/16 in, Ball Stud Thread Size 5/16 In.-24, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.312 in, Shank Thread Length 1 1/4 in, Shank Thread Size 5/16 In.-24, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.625 in, Ball Material Stainless Steel, Ball Material Grade 440C, Ball Stud Material Stainless Steel

    graingerSKU: 20G076, mscSKU: , zoro_no: G5648465, mongo_id: 65bbe88b22d7a989a98fdda5

Web Price
$21.61 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
0.625 in
Stainless Steel
440C
1 3/16 in
Stainless Steel
Right Hand
9/16 in
5/16-24
440C Stainless Steel Spherical Ball
5/16 in
+0.0015/-0.0005 in
Follows SAE Specification J1120
China
5/16-24
0.532 in
0.687 in
0.875 in
1.875 in
1.25 in
2.313 in
7/8 in
0.312 in
300 Series Stainless Steel
Stainless Steel
Chrome Plated
0.437 in
22 Degrees
22 Degrees
2 5/16 in
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
1 1/4 in
5/16-24
Male Studded
ISO Certified 9001
3,278 lb
3,278 lbf
0.687 in
Inch
Right Hand
5/16-24
Male Studded
