Home / Counter, 7 Segment Red LED, 8 Digits

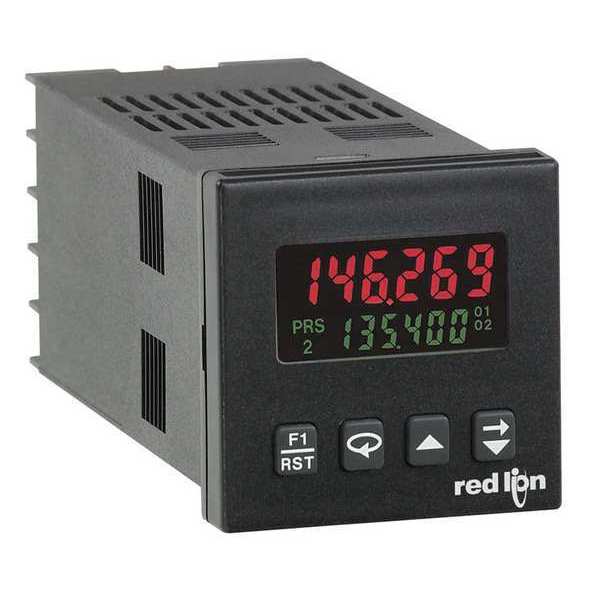

Counter, 7 Segment Red LED, 8 Digits

SKU
Brand Red Lion Controls
Categories
Description Counter, Number of Digits 8, 7 Segment Red LED Display, Character Height 0.4 in, Input Signal 12VDC Current Sinking, 30V DC Current Sourcing, Output Rating 10 to 16 VDC @ 0.1 A, Output NPN Open Collector, TTL, Mounting Panel, Height 1.95 in, Depth 4.2 in, Width 3.8 in, Scaler Yes, Power Required 10 to 16 V DC, 115/230 V AC, Min. On/Off Pulse 10 msec, Prescaling Range -9,999,999 to 99,999,999, Reset Type Front Panel Push Button, Connector Type High Compression Cage-Clamp Terminal Block
graingerSKU: 793JG8, mscSKU: , zoro_no: G305293494, mongo_id: 65bbe7a93aaddbd5a90aaf07

Web Price

$416.24 / each

Qty

Product Details

Character Height 0.4 in

Connector Type High Compression Cage-Clamp Terminal Block

Country of Origin (subject to change) United States

Depth 4.2 in

Display 7 Segment Red LED

Fits 3.62 in x 1.77 in Panel Cutout

Height 1.95 in

Includes Mounting Clip; Panel Gasket

Input Signal 12VDC Current Sinking, 30V DC Current Sourcing

IP Rating 65; 20

Manufacturers Warranty Length 2 yr

Min. On/Off Pulse 10 msec

Mounting Panel

NEMA Rating 4X

Number of Digits 8

Output NPN Open Collector, TTL

Output Rating 10 to 16 VDC @ 0.1 A

Package Quantity 1

Power Required 10 to 16 V DC, 115/230 V AC

Prescaling Range -9,999,999 to 99,999,999

Product Type Lite Counter

Reset Type Front Panel Push Button

Scaler Yes

Special Features Bi-Directional Counting, Display Store, Programmable Scale Factor, Remote Reset Capability

Standards CSA C22.2 No. 14-M95, CSA C22.2 No. 61010-1, EN 61010-1, IEC 529, IEC 61010-1, IECEE CB Scheme Test Report No 04ME11209-20041018, UL File E137808, UL File E179259, UL Listed 508, UL Listed 61010A-1

Width 3.8 in
