Home / Phase Rotation Tester, Non-Contact

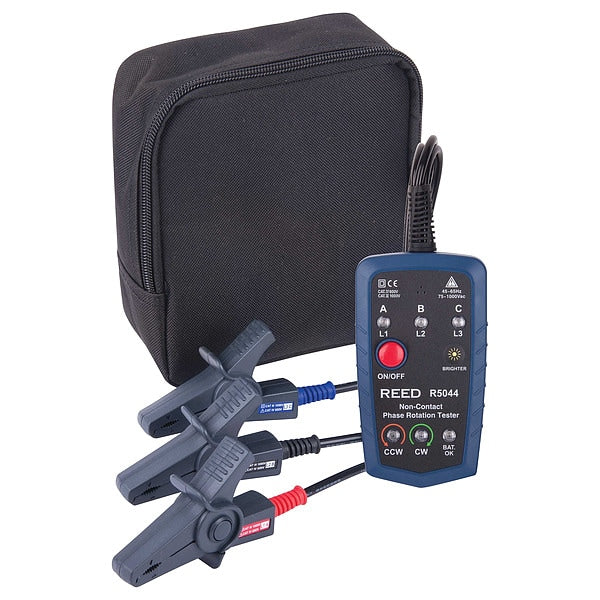

Phase Rotation Tester, Non-Contact

SKU
Brand Reed Instruments
Categories
Description Phase Rotation Tester, CAT Safety Rating CAT III 1000V, CAT IV 600V, Display Screen Type No Display, Display Type No Display, For Voltage Range 75 to 1,000V AC, Includes (3) Color-Coded Cables with Alligator Clips, Non-Contact Phase Rotation Tester, Soft Carrying Case, Maximum Frequency 65 Hz, Minimum Frequency 45 Hz, Testing Functions Motor Rotation, Phase Rotation, Alert Type Light, Sound, Battery Chemistry Alkaline, Battery Size 9V, Circuit Connection Type Non-Contact
graingerSKU: , mscSKU: , zoro_no: G0937420, mongo_id: 65bbe68a3aaddbd5a90391f8

Web Price

$308.74 / each

Qty

Product Details

Alert Type Light, Sound

Battery Chemistry Alkaline

Battery Size 9V

CAT Safety Rating CAT III 1000V, CAT IV 600V

Circuit Connection Type Non-Contact

Country of Origin (subject to change) Taiwan, Province of China

Display LED

Display Screen Type No Display

Display Type LED Bulb

Features Adjustable LED Brightness Allows for Measurement in Sunlight and Lowly Lit Environments, Color-Coded Leads, Low Battery Indicator

For Phase Three

For Voltage Range 75 to 1,000V AC

Frequency Range 45 to 65 Hz

Includes (3) Color Coded Cables with Alligator Clips, Battery, Non-Contact Phase Rotation Tester, Soft Carrying Case

Includes Batteries Yes

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Maximum Operating Temperature 122 Degrees F

Maximum Frequency 65 Hz

Maximum Operating Temperature 122 Degrees F

Minimum Frequency 45 Hz

Minimum Operating Temperature 14 Degrees F

Motor Rotation Yes

Number of Batteries Required 1

Package Quantity 1

Phase Rotation Yes

Phase Voltage Present Indicator Yes

Power Source Battery

Product Type Phasing & Motor Rotation Meters

Safety Rating CAT III 1000V, CAT IV 600V

Standards CE

Testing Functions Motor Rotation, Phase Rotation

Testing Functions-Features R5044 Motor Rotation Adjustable LED Brightness Allows for Measurement in Sunlight and Lowly Lit Environments, R5044 Motor Rotation Color-Coded Leads, R5044 Motor Rotation Low Battery Indicator, R5044 Phase Rotation Adjustable LED Brightness Allows for Measurement in Sunlight and Lowly Lit Environments, R5044 Phase Rotation Color-Coded Leads, R5044 Phase Rotation Low Battery Indicator

Tool Height 5 in

Tool Length 1.8 in

Tool Width 2.8 in

Voltage Range 75 to 1000V AC
