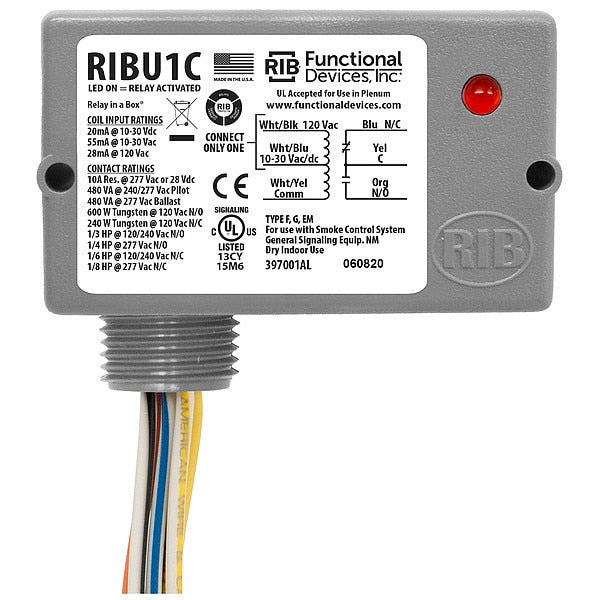

Enclosed Pre-Wired Relay, 10A@277VAC, SPDT
Enclosed Pre-Wired Relay, 10A@277VAC, SPDT

Enclosed Pre-Wired Relay, 10A@277VAC, SPDT

  • Rib
  • Enclosed Pre-Wired Relay, Coil Voltage 120V AC, Contact Form SPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Input Voltage 10 to 30V AC, 120V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 1.5 in, Body Width 2.8 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp

    graingerSKU: 5LE35, mscSKU: , zoro_no: G1045256, mongo_id: 65bbe7ba9a749db822751232

Web Price
$26.49 / each
Qty

Product Details

10A @ 277V
Pilot
Pilot Duty
UL Listed, C-UL, CE (All models), UL916
1.5 in
1.5 in
1.5 in
1.7 in
2.8 in
2.8 in
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBU1C) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
120V AC
10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBU1C) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
10 to 30V AC/DC, 120V AC
10A @ 277VAC, 10A @ 28VDC
SPDT
SPDT
Gold Flashed Silver Cadmium Oxide
10 A @ 277V
10 A @ 28V
10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
United States
10 A
10A @ 28V
1.7H x 2.8W x 1.5D
Wire Lead
10 million cycles minimum mechanical
1/2 in NPT Nipple, LED Indicator
Exhaust Fans, Motors, Vacuums
50/60 Hz
Yes
1/6 hp
1/6 hp
UL Accepted for Use in Plenum, NEMA 1
1/6 hp, 1/3 hp
1/6 hp, 1/3 hp
5 to 95% (noncondensing)
50 Hz, 60 Hz
50/60
LED
10 to 30V AC, 120V AC/DC
Prewired Relay
16 in
140 Degrees F
10,000,000
-30 Degrees F
1/2 in Nipple, Surface
Surface
1
1
0.50 in NPT
One (1) SPDT Continuous Duty Coil
20ms
10 A at 10 to 30V AC/DC, 10 A at 120V AC
-30 to 140° F
1.5 in
1.7 in
No
1
0.6 W, 3.4 VA
0.6W, 3.4VA
Surface
LED On - Activated
20 msec
Enclosed
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
LED Indicator
16, 600V Rated
