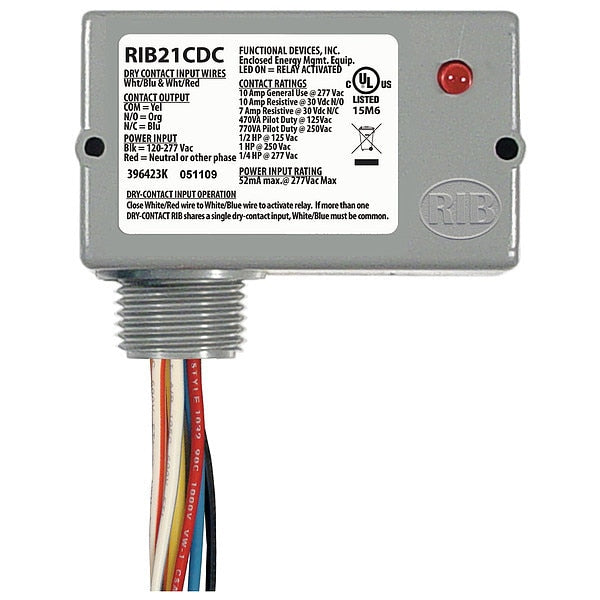

Enclosed Pre-Wired Relay, 10A@30VDC, SPDT

Enclosed Pre-Wired Relay, 10A@30VDC, SPDT

  • Rib
  • Enclosed Pre-Wired Relay, Coil Voltage 277V AC, Contact Form SPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 30V, Input Voltage 120 to 277V AC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 1.5 in, Body Width 2.8 in, Contact Material Silver Alloy, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Lead Length 16 in

    graingerSKU: 2ETA5, mscSKU: , zoro_no: G0922722, mongo_id: 65bbee2b526e052139af36f1

Web Price
$49.24 / each
Qty

Product Details

10A @ 277V
Pilot
Pilot Duty
UL Listed, UL916, C-UL, CE
1.5 in
1.5 in
1.5 in
1.7 in
2.8 in
2.8 in
277V AC
120 to 277V AC
10A @ 30VDC (NO), 7A @ 30VDC (NC)
SPDT
SPDT
Silver Alloy
10 A @ 277V
10 A @ 30V
10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac 470 VA Pilot Duty @ 125 Vac 770 VA Pilot Duty @ 250 Vac
United States
10 A
10A @ 30V (NO), 7A @ 30V (NC)
1.7H x 2.8W x 1.5D
Wire Lead
10 million cycles minimum mechanical
Dry Contact
Exhaust Fans, Motors, Vacuums
50/60 Hz
No
1/2 hp
1 hp
UL Accepted for Use in Plenum, NEMA 1
1/2 hp
1 hp
5 to 95% (noncondensing)
50 Hz, 60 Hz
50/60
LED
120 to 277V AC
Prewired Relay
16 in
140 Degrees F
10,000,000
-30 Degrees F
1/2 in Nipple, Surface
Surface
1
1
0.50 in NPT
One (1) SPDT Continuous Duty Coil
1.8 Seconds
10 A at 120 to 277V AC
-30 to 140° F
1.5 in
1.7 in
No
1
12 VA
12.0VA
50 mA @ 240 Vac Max.
Surface
LED On - Activated
1.8 sec
Enclosed
CE Certified, RoHS Compliant, UL 916, UL Listed
LED Indicator
16, 600V Rated
