Home / Enclosed Pre-Wired Relay, 20A@277VAC, SPDT, Application: Power

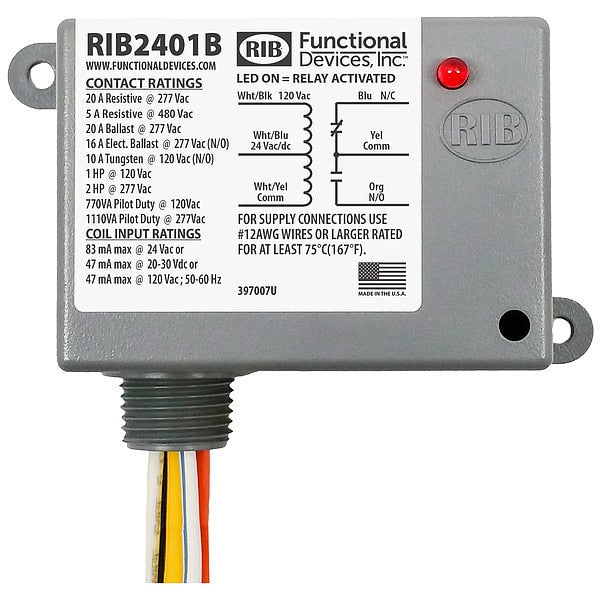

Enclosed Pre-Wired Relay, 20A@277VAC, SPDT, Application: Power
Enclosed Pre-Wired Relay, 20A@277VAC, SPDT, Application: Power

Enclosed Pre-Wired Relay, 20A@277VAC, SPDT, Application: Power

  • Rib
  • Enclosed Pre-Wired Relay, Coil Voltage 24V AC, Contact Form SPDT, Current Rating 20 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 120V, 16 A @ 277V, 20 A @ 277V, 5 A @ 480V, Input Voltage 120V AC/DC, 24V AC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 1.8 in, Body Width 3.2 in, Contact Material Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1 hp, Lead Length 16 in

    graingerSKU: 5LE36, mscSKU: , zoro_no: G1282653, mongo_id: 65bbe7473aaddbd5a9085beb

Web Price
$49.36 / each
Qty

Product Details

20A @ 277V, 5A @ 480V
Power
Power
UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
1.8 in
1.8 in
1.8 in
2.3 in
3.2 in
3.2 in
24V AC
120V AC, 24V AC/DC
1/2 NPT, 3/4 NPT
20A @ 277VAC, 5A @ 480VAC
SPDT
SPDT
Silver Cadmium Oxide
20A
10 A @ 120V, 16 A @ 277V, 20 A @ 277V, 5 A @ 480V
1-SPDT
United States
20 A
2.3H x 3.2W x 1.8D
Wire Lead
1/2 in NPT Nipple, LED Indicator
Exhaust Fans, Motors, Vacuums
50/60 Hz
1 hp
NEMA 1
1 hp
2
50 Hz, 60 Hz
50/60
LED
120V AC/DC, 24V AC
Prewired Relay
Surface
16 in
10 million cycles minimum mechanical
140 Degrees F
10,000,000
-30 Degrees F
DIN Rail Mount
1/2 in Nipple, Surface
Surface
1
1
0.50 in NPT
20 A at 120V AC, 20 A at 24V AC/DC
5% to 95% non-condensing
-30° to 140°F(-34° to 60°C)
1.8 in
2.3 in
1
0.84 W, 5.6 VA
0.84W, 5.6VA
Surface
LED, ON - relay activated
18 msec
Enclosed
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
LED Indicator
Plastic Box
16 (40.6 cm)
