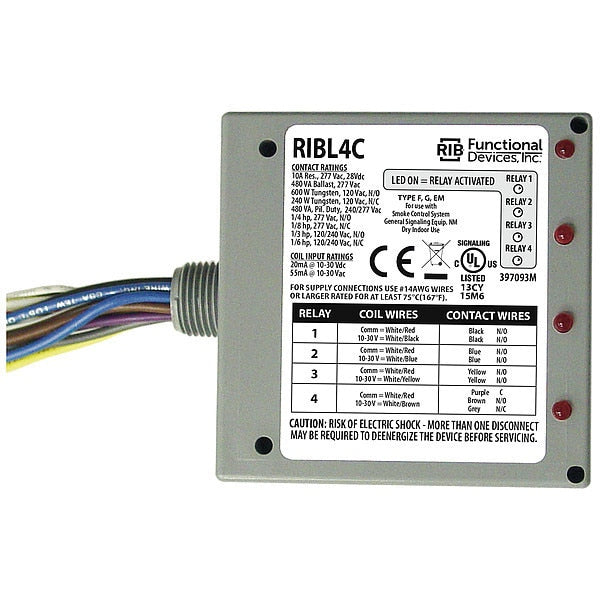

Enclosed Pre-Wired Rlay, 10A, (3)SPST, SPDT

Enclosed Pre-Wired Rlay, 10A, (3)SPST, SPDT

  • Rib
  • Enclosed Pre-Wired Relay, Coil Voltage 30V AC, Contact Form SPDT, 3PST-NO, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Input Voltage 10 to 30V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 4 in, Body Width 4 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp

    graingerSKU: , mscSKU: , zoro_no: G2295894, mongo_id: 65bbe6323aaddbd5a90131f1

Web Price
$146.24 / each
Qty

Product Details

10A @ 277V
Pilot
Pilot Duty
UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
1.8 in
1.8 in
4 in
4.0 in
4 in
4.0 in
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
30V AC
10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
10 to 30V AC/DC
10A @ 277VAC, 10A @ 28VDC
SPDT, 3PST-NO
(1) SPDT, (3) SPST-NO
Gold Flashed Silver Cadmium Oxide
10 A @ 277V
10 A @ 28V
10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
United States
10 A
10A @ 28V
4.0H x 4.0W x 1.8D
Wire Lead
10 million cycles minimum mechanical
1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Pilot Duty
Exhaust Fans, Motors, Vacuums
50/60 Hz
Yes
1/6 hp
1/6 hp
UL Accepted for Use in Plenum, NEMA 1
1/6 hp, 1/3 hp
1/6 hp, 1/3 hp
5 to 95% (noncondensing)
50 Hz, 60 Hz
50/60
LED
10 to 30V AC/DC
Prewired Relay
16 in
140 Degrees F
10,000,000
-30 Degrees F
1/2 in Nipple, Surface
Surface
1
1
0.50 in NPT
Three (3) SPST + One (1) SPDT Continuous Duty Coil (RIBL4C)
20ms
10 A at 10 to 30V AC/DC
-30 to 140° F
1.8 in
4.0 in
No
1
0.1 to 0.6W, 0.3 to 1.6VA
Surface
LED On - Activated
20 msec
Enclosed
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
LED Indicator
16, 600V Rated
