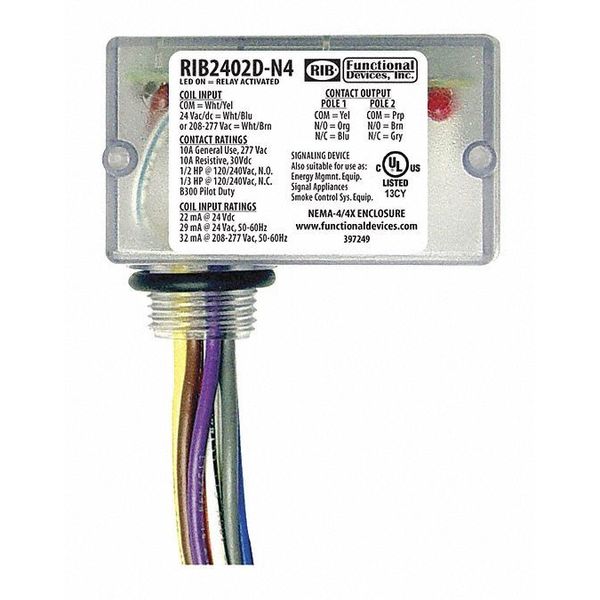

Enclosed Relay, 10A, DPDT

SKU
Brand Rib
Categories
Description Relay,10A,DPDT,24VAC/DC/120VAC,NEMA 4
graingerSKU: , mscSKU: , zoro_no: G3224687, mongo_id: 65bbe98f22d7a989a9961296

Web Price

$102.99 / each

Qty

Product Details

Approvals UL Listed, C-UL, CE, UL508 (All models)

Coil Current 24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 36 mA @ 208-277 Vac (RIB2402D) 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 30 Vdc

Coil Voltage Input 24 Vac/dc ; 208-277 Vac ; 50-60 Hz (RIB2402D) Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc

Coil Volts 24VAC/DC, 120VAC

Contact Ratings 10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120/240 Vac (N/O) 1/3 HP @ 120/240 Vac (N/C) B300 Pilot Duty 120 Vac 30A Make 3A Break (360 VA) 240 Vac 15 A Make 1.5A Break (360 VA) 208 Vac 17.3A Make 1.73A Break (360 VA) 277 Vac 13A Make 1.3A Break (360 VA) 24 Vac 30A Make 5A Break (120VA) 5A Max

Country of Origin (subject to change) United States

Dimensions 1.70H x 2.80W x 1.50D with 0.50 NPT nipple

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash No

Height 1.5

Housing Rating NEMA 4X housing

Humidity Range 5 to 95% (noncondensing)

No. of Relays & Contact Type One (1) DPDT Continuous Duty Coil

Operate Time 8ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch No

Package Quantity 1
