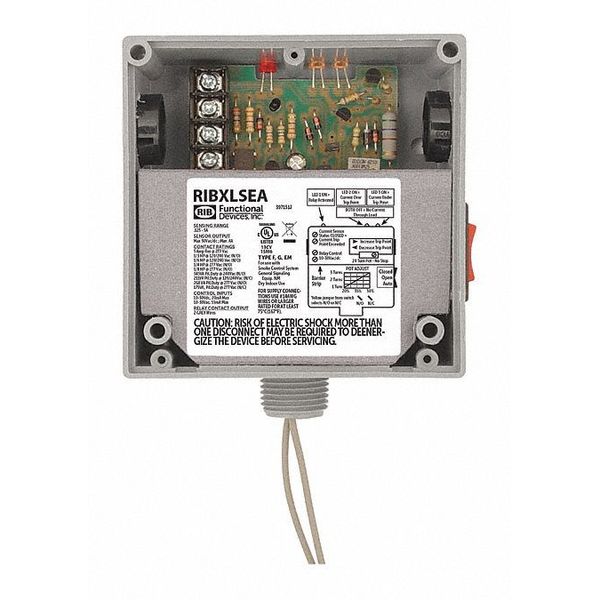

Enclosed Relay/Current Switch, 5A

SKU
Brand Rib
Categories
Description Enclosed Relay/Current Switch,5A

Web Price

$221.24 / each

Qty

Product Details

Approvals UL Listed, UL916, C-UL, CE

Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc

Coil Voltage Input 10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc

Contact Ratings 5 Amp Resistive @ 277 Vac 345 VA Pilot Duty @ 120/240 Vac (N/O) 268 VA Pilot Duty @ 277 Vac (N/O) 211 VA Pilot Duty @ 120/240 Vac (N/C) 175 VA Pilot Duty @ 277 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)

Country of Origin (subject to change) United States

Dimensions 4.00H x 4.00W x 1.81D with 0.50 NPT nipple

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash Yes

Housing Rating UL Accepted for Use in Plenum, NEMA 1

Humidity Range 5 to 95% (noncondensing)

No. of Relays & Contact Type One (1) SPST Continuous Duty Coil

Operate Time 20ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch Yes

Package Quantity 1

Relay Status Red LED On - Activated
