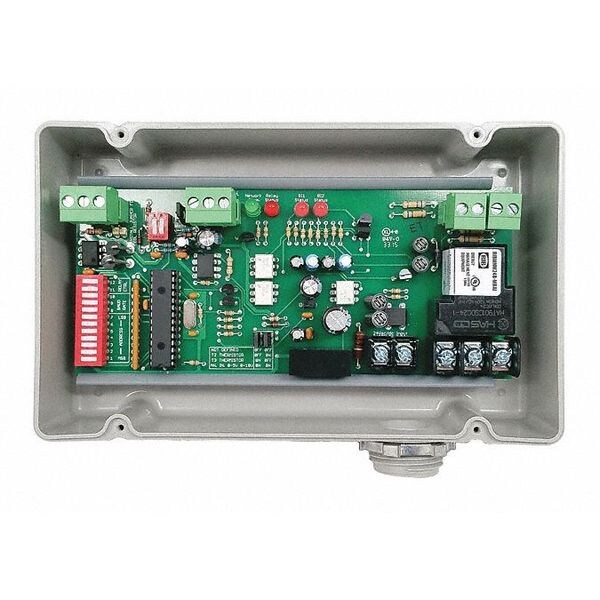

Enclosed RTU Network Relay

SKU
Brand Rib
Categories
Description Enclosed MODbus RTU Network Relay
graingerSKU: , mscSKU: , zoro_no: G3226531, mongo_id: 65bbe6bb3aaddbd5a904c6a4

Web Price

$281.24 / each

Qty

Product Details

Approvals CE, UL Listed, UL916, C-UL

Baud Rate 9600, 19200, 38400, 57600 (DIP Switch Selectable)

BI1 Status Pink LED On - Activated

BI2 Status Pink LED On - Activated

Contact Ratings 20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 1110 VA Pilot Duty @ 277 Vac 770 VA Pilot Duty @ 120 Vac 2 HP @ 277 Vac 1 HP @ 120 Vac

Country of Origin (subject to change) United States

Dimensions 4.28H x 7.00W x 2.00D with 0.75 NPT nipple

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash No

Height 2

Housing Rating UL Listed, NEMA 1, C-UL, CE Approved, UL Accepted for Use in Plenum,

Humidity Range 5 to 95% (noncondensing)

Network Communication Green LED

Network Media Twisted Pair 22-24AWG, shielded recommended, EIA/TIA-485 (standard RS485)

No. of Relays & Contact Type One (1) SPDT Continuous Duty Coil

Operate Time 18ms

Operating Temperature -30 to 140ÃÂ° F

Package Quantity 1

Polarity Network is polarity sensitive

Power Input Ratings 81 mA @ 24 Vdc 111 mA @ 24 Vac

Relay Override Switch DIP Switch Control

Relay Status Red LED On - Activated

Terminations Functional Devices product installed at both ends of the standard RS485 ModbusÃÂ® RTU network Ã¢ÂÂ Use 120 ÃÂ© end of line resistors. All other cases Ã¢ÂÂ Follow instructions from the device installed at the end of the ModbusÃÂ® network

Track Mount MT212-6 Mounting Track Provided

Width 7
