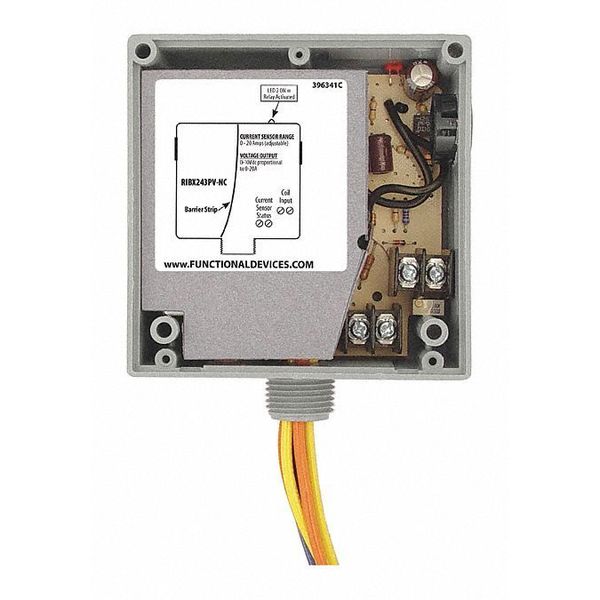

Enclosed SPST-N/C Relay/Analog, 20A

SKU
Brand Rib
Categories
Description Enclosed,20A,SPST-N/C,Relay/Analog

Web Price

$309.99 / each

Qty

Product Details

Approvals UL Listed, UL916, C-UL, CE

Coil Current 210 mA @ 24 Vac 154 mA @ 30 Vdc

Coil Voltage Input 24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 20 Vac / 22 Vdc

Contact Ratings 20 Amp Resistive @ 300 Vac, 28 Vdc 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 15 Amp Resistive @ 600 Vac 770 VA Pilot Duty @ 120 Vac, 1 Phase 1158 VA Pilot Duty @ 240 Vac, 1 Phase 1110 VA Pilot Duty @ 277 Vac, 1 Phase 1640 VA Pilot Duty @ 480 Vac, 1 Phase 1466 VA Pilot Duty @ 240 Vac, 3 Phase 2112 VA Pilot Duty @ 480 Vac, 3 Phase Heavy Pilot Duty @ 600 Vac 7.5 HP @ 480 Vac, 3 Phase 5 HP @ 240 Vac, 3 Phase 3 HP @ 480-600 Vac, 1 Phase 2 HP @ 240-277 Vac, 1 Phase 1 HP @ 120 Vac, 1 Phase

Country of Origin (subject to change) United States

Dimensions 4.00H x 4.00W x 1.81D with 0.50 NPT nipple

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash No

Height 1.8

Housing Rating UL Accepted for Use in Plenum, NEMA 1

Humidity Range 5 to 95% (noncondensing)

No. of Relays & Contact Type One (1) 3PST Continuous Duty Coil

Operate Time 20ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch No

Package Quantity 1
