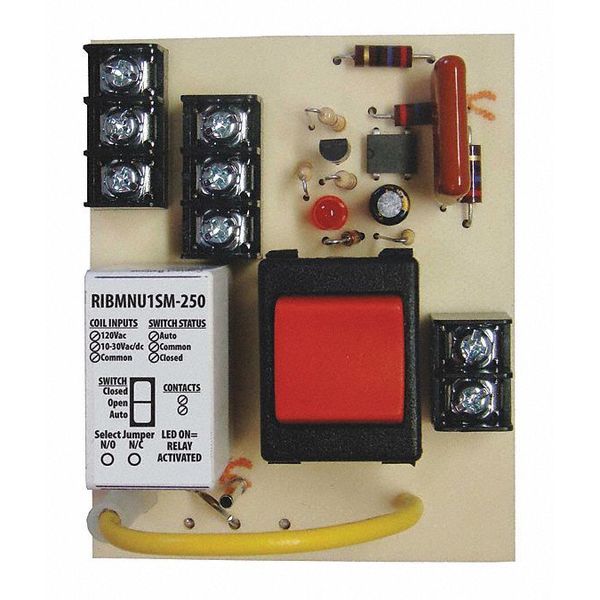

Track Mount Relay, 15A, SPST

SKU
Brand Rib
Categories
Description Track Mount Relay,15A,SPST,12VAC/DC
graingerSKU: , mscSKU: , zoro_no: G3225807, mongo_id: 65bbe6543aaddbd5a9021835

Web Price

$61.74 / each

Qty

Product Details

Approvals UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE

Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBMNU1SM-250) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc

Coil Voltage Input 10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBMNU1SM-250) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc

Contact Ratings 15 Amp Resistive @ 125 Vac 10 Amp Resistive @ 250 Vac 345 VA Pilot Duty @ 120/240 Vac (N/O) 211 VA Pilot Duty @ 120/240 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C)

Country of Origin (subject to change) United States

Dimensions 3.38H x 2.75W x 1.38D1/1.88D2

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash Yes

Humidity Range 5 to 95% (noncondensing)

No. of Relays & Contact Type One (1) SPST Continuous Duty Coil

Operate Time 20ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch Yes (with Monitor)

Package Quantity 1

Relay Status LED On - Activated

Track Mount 2.750
