Home / Track Mount Relay/Current Switch, 20A

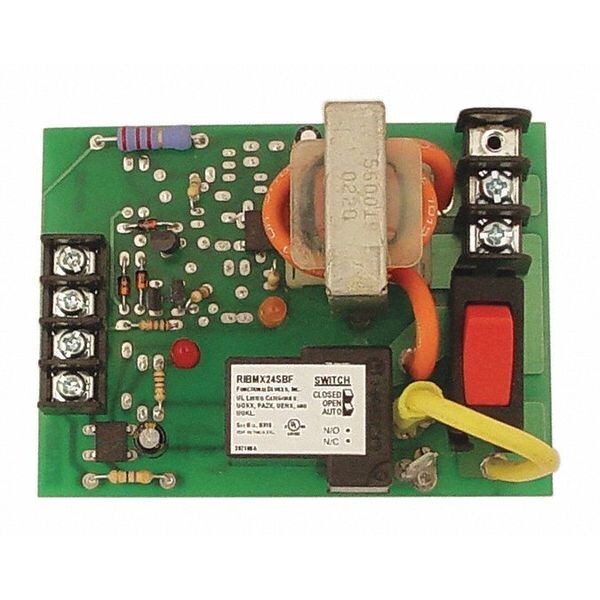

Track Mount Relay/Current Switch, 20A

SKU
Brand Rib
Categories
Description Trk Mnt,20A,Rly/Current Switch Adjstable
graingerSKU: , mscSKU: , zoro_no: G3225980, mongo_id: 65bbe85f22d7a989a98ee75b

Web Price

$141.24 / each

Qty

Product Details

Approvals UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE

Coil Current 50 mA @ 18 Vac 83 mA @ 24 Vac 33 mA @ 22 Vdc 35 mA @ 24 Vdc 47 mA @ 30 Vdc

Coil Voltage Input 24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 22 Vdc

Contact Ratings 20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac (N/O) 10 Amp Ballast @ 277 Vac (N/C) Not rated for Electronic Ballast 10 Amp Tungsten @ 120 Vac (N/O) 1,110 VA Pilot Duty @ 277 Vac 770 VA Pilot Duty @ 120 Vac 240 Watt Tungsten @ 120 Vac (N/C) 2 HP @ 277 Vac 1 HP @ 120 Vac

Contact Type SPST

Country of Origin (subject to change) United States

Dimensions 2.95H x 4.00W x 1.25D1/1.75D2

Expected Relay Life 10 million cycles minimum mechanical

Gold Flash No

Humidity Range 5 to 95% (noncondensing)

Operate Time 18ms

Operating Temperature -30 to 140ÃÂ° F

Override Switch Yes

Package Quantity 1

Relay Status Red LED On - Activated

Resistive 20 Amp
