Ignition Module

SKU
Brand Robertshaw
Categories
Description Ignition Control, Product Type Ignition Control, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 1 min, Pre-Purge Time 5 min, Number of Retries 3, Main Valve Current Output 1.5 A, Flame Sensor Current Output 0.7 mA, Ignition Cycle Time 60 seconds, Automatic Reset Time Not Applicable, Compatible with Series Universal
graingerSKU: 4E958, mscSKU: , zoro_no: G2656525, mongo_id: 65bbe9f322d7a989a9988cca

Web Price

$196.24 / each

Qty

Product Details

Amps AC 1.5 A

Application LP/Natural Gas Furnaces

Automatic Reset Time Not Applicable

Compatible with Brand Carrier, Goodman, Honeywell, Johnson Controls, Johnstone Supply, Lennox Industries, Robertshaw, Uni-Line, Westward

Compatible with Series Universal

Control Voltage 24V AC

Control Volts 24 V

Country of Origin (subject to change) Mexico

Electrical Connection Type 1/4 in Spade Terminals, Molex Plug

Electrical Connections 1/4 in Spades and Molex plug

Electrical Ratings 24

Flame Sensor Current Output 0.7 mA

For Fuel Type Natural Gas

For Use With Residential, Commercial Heating Equipment, Universal Replacement Spark Control Designed For Maximum Compatibility

Frequency 50/60 Hz

Gas Type NG

Ignition Cycle Time 60 seconds

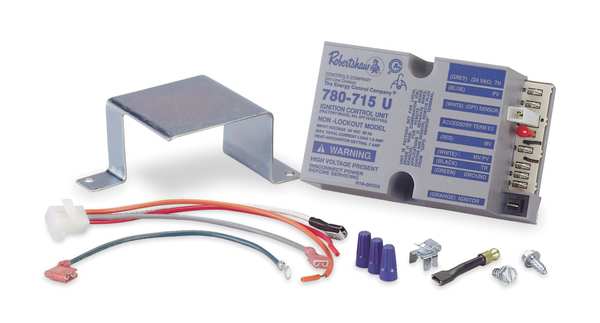

Includes 780-715 Module, Mounting Kit, Wiring Harness

Input Voltage 24V AC

Lock Out Time 1 min

Main Valve Current Output 1.5 A

Maximum Input Current 1.5 A

Maximum Operating Temperature 175 Degrees F

Minimum Operating Temperature -40 Degrees F

Number of Retries 3

OEM Replacement Part Number 100-00821-02, 13707-23S, 4E958, 63355, 63550, 661400, 668-601, 73P47, 73P4701, 780-765, CSA35A-617R, CSA35A-618R, CSA42A-600R, CSA42A-601R, CSA42A-602R, CSA42A-603R, CSA42A-604R, CSA43A-600R, CSA44A-600R, CSA45A-601R, CSA45A-602R, CSA46A-600R, CSA48A-600R, G600AX-1, G600AY-1, G60AAG-1, G60AAG-3, G60AAG-4, G60AAG-5, G60AAG-6, G60CAG-5, G60CBG-1, G60CBG-10, G60CBG-11, G60CBG-12, G60CBG-14, G60CBG-16, G60CBG-17, G60CCG-1, G60CPG-1, G60DBG-1, G60DBG-2, G60DCG-1, G60DCG-2, G60DCG-3, G60DCG-4, G60DGB-1, G60PAG-1, G60PAG-2, G60PAG-3, G60PAG-4, G60PAG-5, G60PAG-6, G60PAJ-1, G60PAK-1, G60PAK-2, G60PFQ-1, G60QAG-2, G60QAG-4, G60QBG-1, G60QBG-2, G60QBG-3, G60QBG-4, G60QBG-5, G60QBG-6, G60QBG-7, G60QBG-8, G60QBG-9, G60QBH-1, G60QBK-1, G60QBL-1, G60QBL-2, G60QCJ-1, G60QCL-1, G60QDG-1, G60QLG-1, G60QPL-1, G60QRL-2, G60QRL-3, G60RAG-1, G60RBG-1, G60RBG-2, G60RBG-3, G60RBK-1, G60RBK-2, G60RCG-1, G60RCG-2, G60RCJ-1, G60RDG-1, G60RDK-1, G60RHP-1, G60RPL-1, G65BBG-1, G65BBG-2, G65BBG-3, G65BBG-4, G65BBG-5, G65BBG-6, G65BBG-7, G65BBG-8, G65BBM-1, G65BBM-2, G65BBM-3, G65BBM-4, G65BCG-1, G65BCM-1, G65BFG-1, G65BKG-1, G65BKG-2, G65BKG-3, G65BKM-1, G65BKM-2, G65BKM-3, G65BLG-2, G66AG-1, G66AG-2, G66BG-1, L37-706, L37-838, LH33AP101, LH33CM600, LH33CZ003, P361-3904, P771-1033, P771-1035, R8184G 1013, R8184G 1161, S8600F1000, S8600F1034, S8600F1042, S8610A1009, S8610F1008, S8610F1016, S86A1001, S86A1019, S86A1027, S86A1035, S86B1009, S86B1017, S86B1025, S86E1002, S86E1010, S86E1028, S86E1036, S86E1044, S86E1051, S86E1069, S86E1077, S86E1101, S86E1119, S86E1127, S86F1000, S86F1018, S86F1026, S86F1042, S86F1059, S86F1067, S86F1075, S86F1083, S86F1091, S90A1005, SP715, SP715A, SP715U, USI715U

Operation Description Automatic Recycle Features Assure That, In The Event Of Flame Failure, Main Gas Is Disabled And The Spark Repetition Sequence Is Restarted Until Pilot Gas Is Ignited. Only After Pilot Ignition Has Been Re-Established Can Main Gas Be Returned To The Burner.

Package Quantity 1

Pilot Valve Current Output 1 A

Pre-Purge Time 5 min

Product Type Ignition Control

Replacement Type Universal

Retries Continuous

Series 780

Standards cCSAus

Thermostat Anticipator Setting Thermostat Anticipator

Type Nonlockout, 1 Rod or 2 Rod Sensing

Voltage 24
