Ignition Module

SKU
Brand Robertshaw
Categories
Description Ignition Control, Product Type Ignition Control, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 1 min, Pre-Purge Time 5 min, Number of Retries 3, Main Valve Current Output 1.5 A, Flame Sensor Current Output 0.7 mA, Ignition Cycle Time 60 seconds, Automatic Reset Time Not Applicable, Compatible with Series Universal
graingerSKU: 4E959, mscSKU: , zoro_no: G2500565, mongo_id: 65bbe84c22d7a989a98eaf19

Web Price

$221.24 / each

Qty

Product Details

Amps AC 1.5 A

Automatic Reset Time Not Applicable

Compatible with Brand Airflow, Alco Food, Binet, Bradford-White, Cabell, Carrier, Chamberlain, Ed PAC/AC, Edison, Eisco Limited, Electro-Home, Electro-Therm, Elixier, Elkay, Ellis & Watts, Elmet, Embassy Industries, General Steel Wares, Honeywell, International, Johnson Controls, Johnstone Supply, Kool-Fire, Leemco, Lennox, Robertshaw, Uni-Line, Westward

Compatible with Series Universal

Control Voltage 24V AC

Control Volts 24 V

Country of Origin (subject to change) Mexico

Electrical Connection Type 1/4 in Spade Terminals, Molex Plug

Electrical Connections 1/4 in Spades and Molex plug

Electrical Ratings 24

Flame Sensor Current Output 0.7 mA

For Fuel Type LP

For Use With Residential, Commercial Heating Equipment, Universal Replacement Spark Control Designed For Maximum Compatibility

Frequency 50/60 Hz

Gas Type LP

Ignition Cycle Time 60 seconds

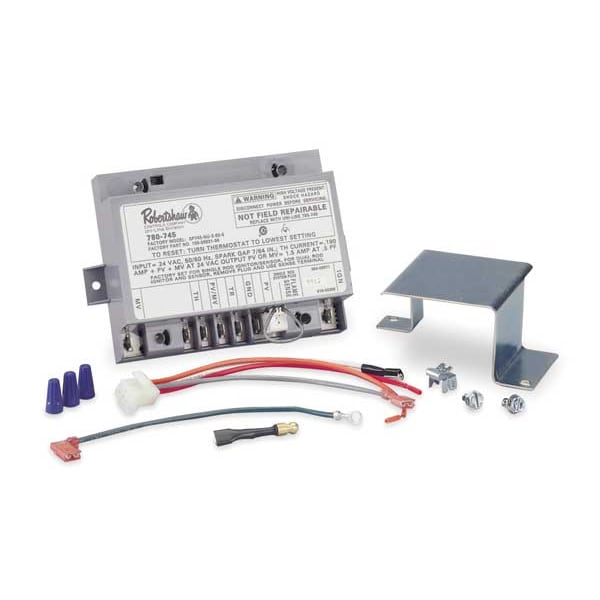

Includes 780-845 Module, Mounting Kit, Wiring Harness

Input Voltage 24V AC

Lock Out Time 1 min

Main Valve Current Output 1.5 A

Maximum Input Current 1.5 A

Maximum Operating Temperature 175 Degrees F

Minimum Operating Temperature -40 Degrees F

Number of Retries 3

Operation Description Lockout Feature To Shut Off All Gas To The Furnace, Should Pilot Ignition Fail To Occur After A Predetermined Time Period. The 780-002 Provides 3 Tries For Ignition, Each Ignition Period Is 90 Seconds Followed By A 6 Minute Time Delay Between Ignition Attempts. After 3 Tries If No Pilot Flame Is Sensed, Unit Goes Into Lockout And Must Be Reset At The Thermostat.

Package Quantity 1

Pre-Purge Time 5 min

Prepurge Time (Sec.) 360 sec

Product Type Ignition Control

Replacement Type Universal

Retries 3

Series 780

Standards cCSAus

Thermostat Anticipator Setting Thermostat Anticipator

Type Lockout, 1 Rod or 2 Rod Sensing

Voltage 24
