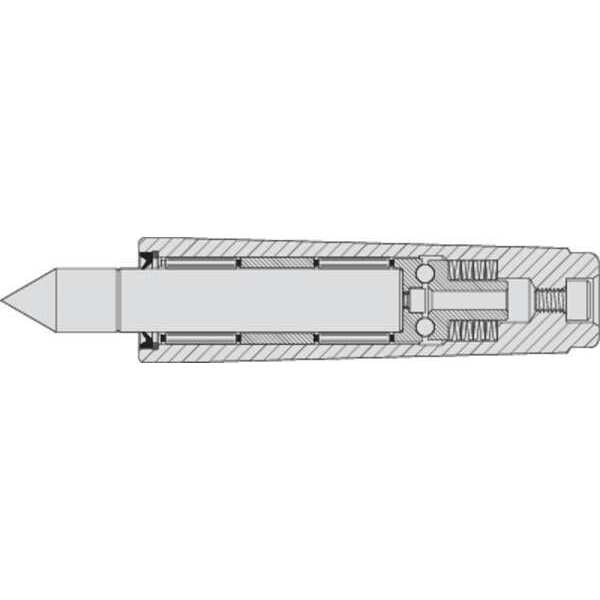

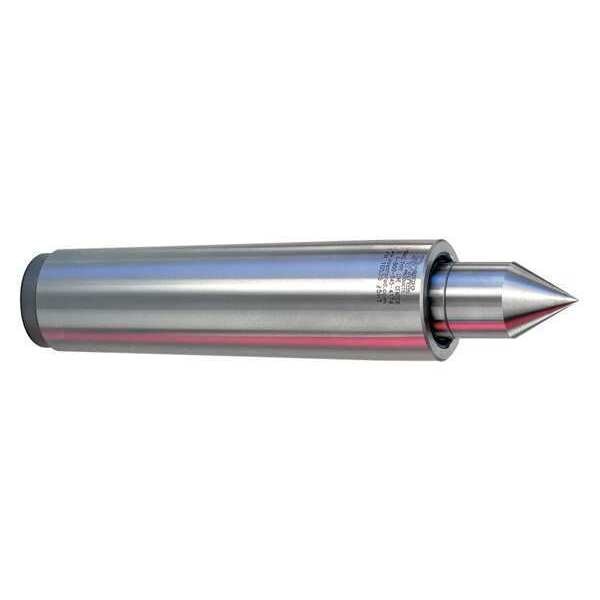

HSS Live Center, 3 MT, Standard Point

SKU
Brand Royal Products
Categories
Description Live Center, Bearing Type Tri-Bearing Design, Point Style Standard Point, Shank Taper Size MT3, Max. Speed 5,000 RPM, Shank Type - Machining Taper, Head Dia. 15/16 in, Point Dia. 35/64 in, Max. Workpiece Weight 940 lb, Accuracy +-0.00005 in, Application Sub-Spindle Machines
graingerSKU: 41LK02, mscSKU: 08695991, zoro_no: G2041028, mongo_id: 65bbe8ab22d7a989a9909959

Web Price

$1,323.74 / each

Qty

Product Details

Accuracy +-0.00005 in

Application Sub-Spindle Machines

Bearing Type Tri-Bearing Design

Bearings Tri-Bearing Design

Body Material High Speed Steel

Construction Steel

Country of Origin (subject to change) United States

Dimension B (In.) 0.938

Dimension F (In.) 1.16

Dimension G (In.) 0.55

Features Can be Used in the Turret of Sub-Spindle Machines to Overcome a Lack of Hydraulic Compensation, Low-Profile Design Provides Outstanding Tool Clearance, Unique Spring-Loaded Point Compensates for Workpiece Thermal Expansion

Function Used to Compensate for Workpiece Thermal Expansion

Head Dia. 15/16 in

Included Angle 60

Included Angle (Deg.) 60

Max. RPM 5000

Max. Speed 5,000 RPM

Max. Workpiece Weight 940 lb

Morse Taper 3 MT

Package Quantity 1

Point Dia. 35/64 in

Point Length 1.1600 in

Point Style Standard Point
