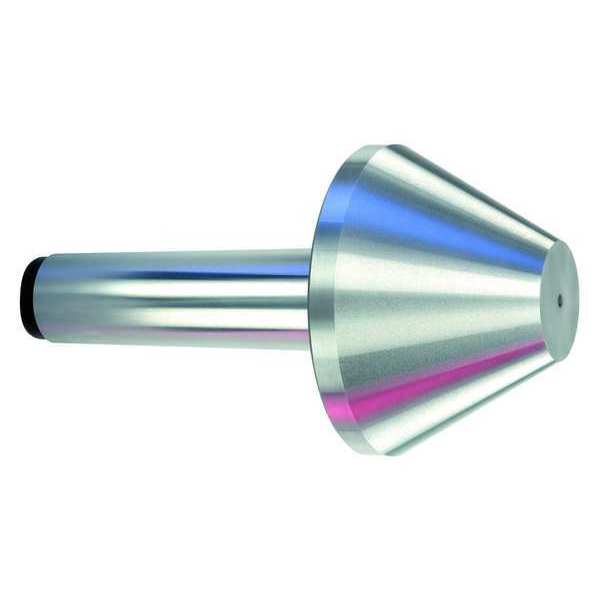

HSS Live Center, 4 MT, Bull Head

SKU
Brand Royal Products
Categories
Description Live Center, Bearing Type Dual-Bearing Design, Point Style Bull Head, Shank Taper Size MT4, Max. Speed 4,500 RPM, Shank Type - Machining Taper, Head Dia. 4.1500 in, Head Length 3.0100 in, Point Dia. 1 1/4 in, Max. Workpiece Weight 860 lb, Accuracy +-0.00005 in, Application Blind Center Holes
graingerSKU: 41LK13, mscSKU: 00100040, zoro_no: G2040915, mongo_id: 65bbea2822d7a989a99990ec

Web Price

$2,298.74 / each

Qty

Product Details

Accuracy +-0.00005 in

Application Blind Center Holes

Bearing Type Dual-Bearing Design

Bearings Dual-Bearing Design

Body Material High Speed Steel

Construction Steel

Country of Origin (subject to change) United States

Dimension B (In.) 4.15

Dimension E (In.) 3.01

Dimension F (In.) 1.25

Features Bull Head Design is Shorter than a Pipe Head, Reducing Potential Interference in Blind Center Hole Applications and Ensuring that the load is Positioned Over the Bearings for Optimum Strength, Designed for Turning Pipes, Tubes, and Parts with Extra-Large Center Holes, Head Diameter is 1/8 in Over Nominal Size, Enabling these Centers to Cover a Wider Range of Workpieces, Two Matched Angular Contact Bearings Provide Good Thrust and Radial Load Ratings

Function Turning Pipes, Tubes and Parts with Extra Large Center Holes

Head Dia. 4.1500 in

Head Length 3.0100 in

Included Angle 60

Included Angle (Deg.) 60

Max. RPM 4500

Max. Speed 4,500 RPM

Max. Workpiece Weight 860 lb

Morse Taper 4 MT

Package Quantity 1

Point Dia. 1 1/4 in

Point Style Bull Head
