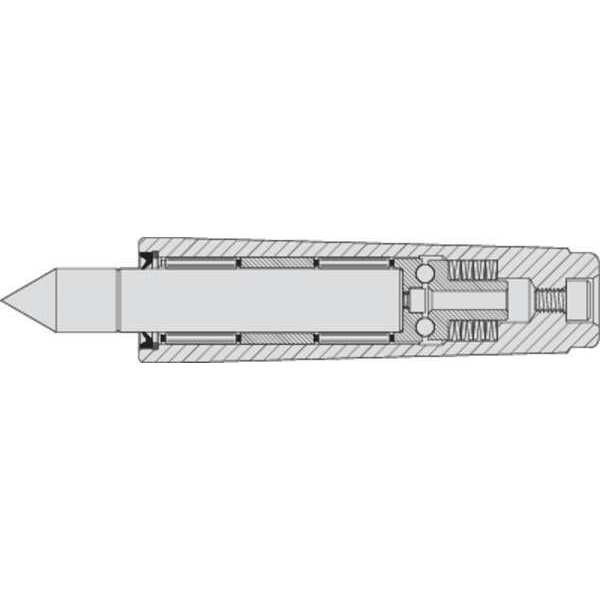

HSS Live Center, 4 MT, Standard Point

SKU
Brand Royal Products
Categories
Description Live Center, Bearing Type Tri-Bearing Design, Point Style Standard Point, Shank Taper Size MT4, Max. Speed 4,500 RPM, Shank Type - Machining Taper, Head Dia. 1.2310 in, Point Dia. 5/8 in, Max. Workpiece Weight 1,400 lb, Accuracy +-0.00005 in, Application Sub-Spindle Machines
graingerSKU: null, mscSKU: null, zoro_no: G2041019, mongo_id: 65bbe6503aaddbd5a902005a

Web Price

$1,653.74 / each

Qty

Product Details

Accuracy +-0.00005 in

Application Sub-Spindle Machines

Bearing Type Tri-Bearing Design

Bearings Tri-Bearing Design

Body Material High Speed Steel

Construction Steel

Country of Origin (subject to change) United States

Dimension B (In.) 1.231

Dimension F (In.) 1.38

Dimension G (In.) 0.63

Features Can be Used in the Turret of Sub-Spindle Machines to Overcome a Lack of Hydraulic Compensation, Low-Profile Design Provides Outstanding Tool Clearance, Unique Spring-Loaded Point Compensates for Workpiece Thermal Expansion

Function Used to Compensate for Workpiece Thermal Expansion

Head Dia. 1.2310 in

Included Angle 60

Included Angle (Deg.) 60

Max. RPM 4500

Max. Speed 4,500 RPM

Max. Workpiece Weight 1,400 lb

Morse Taper 4 MT

Package Quantity 1

Point Dia. 5/8 in

Point Length 1.3800 in

Point Style Standard Point
