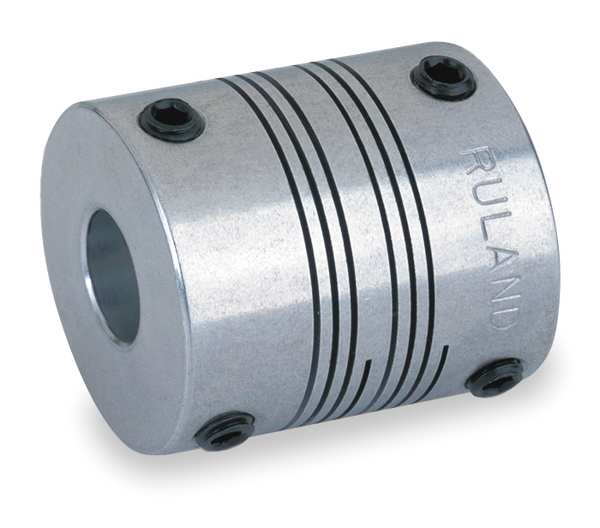

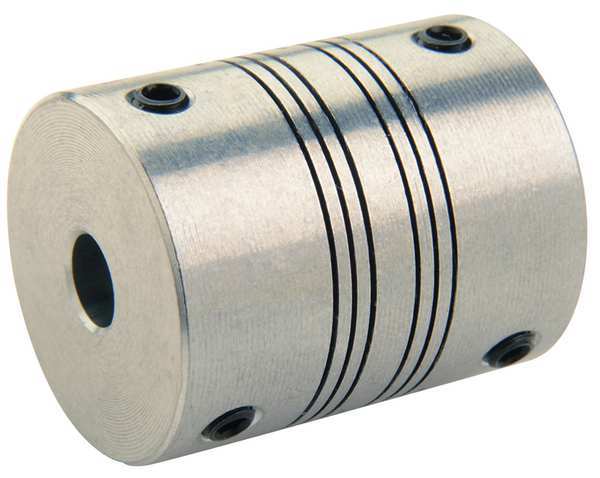

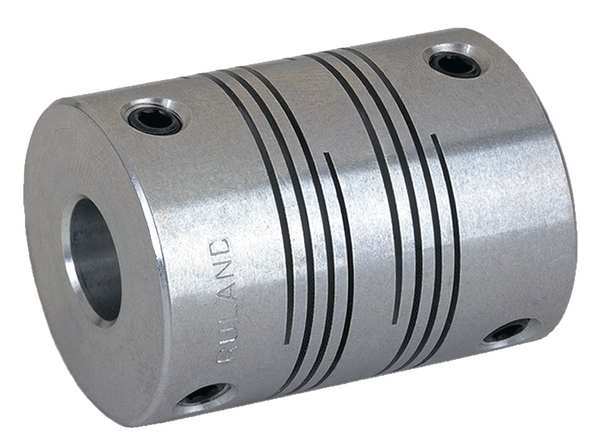

Coupling, 4 Beam, Bore 3/16x3/16 In
Web Price
$39.99
/ each
Product Details
3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.005 in
3/16 in x 3/16 in
3/16 in
3/16 in
+0.001/-0.000 in
Round
0.625 in
United States
Aluminum
Bright
7075
5/8 in
No
6 lb-in
3 lb-in
0.92 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
0.625 in
(2) Set Screw
Motion Control Coupling
0.4 in
0.400
0.4 in
0.4 in
Aluminum
Aluminum
3 Degrees
+/-0.005
0.008 in
6,000 RPM
225 Degrees F
225
225 Degrees F
6,000 RPM
12 in-lb
-40 Degrees F
0.0011 lb-in sq
4
2
0.625 in
0.625
51/64 in
0.80
1
0.008 in
12 in-lb
Alloy Steel
Black Oxide
M3
M3
M3
Set Screw
PSR
Set Screw
1 Piece Set Screw
+0.0000/-0.0005 in
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
4 Beam Set Screw
Inch
12
1.85 in-lb/Deg
0.54
Yes
