Home / Coupling, 4 Beam Clamp, Bore 10 x 8 mm

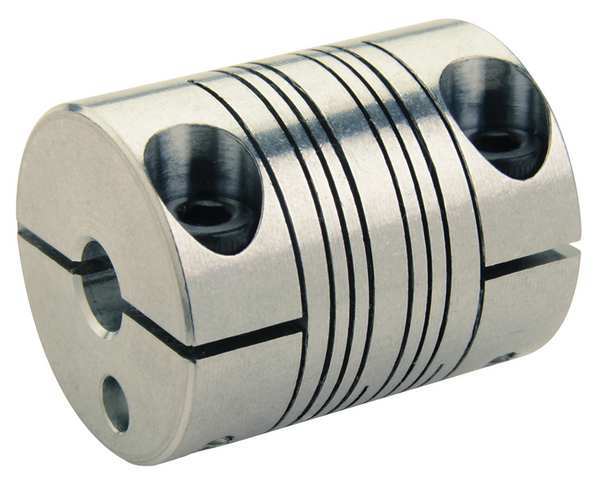

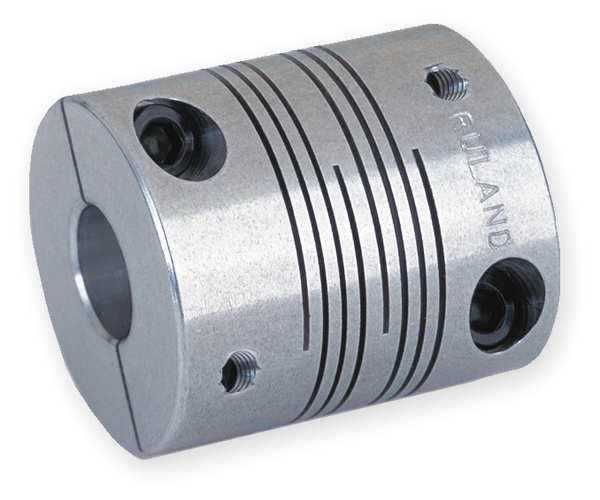

Coupling, 4 Beam Clamp, Bore 10 x 8 mm
Coupling, 4 Beam Clamp, Bore 10 x 8 mm
Coupling, 4 Beam Clamp, Bore 10 x 8 mm
Coupling, 4 Beam Clamp, Bore 10 x 8 mm

Coupling, 4 Beam Clamp, Bore 10 x 8 mm

  • Ruland
  • Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 10 mm, Bore Diameter 2 8 mm, Coupling Material Aluminum, Coupling Outside Diameter 25.4 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.39 N-m, Axial Motion 0.25 mm, Overall Length 31.8 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.56 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 14.7 mm

    graingerSKU: 2ADR9, mscSKU: , zoro_no: G3185856, mongo_id: 65bbe8569a749db822788b15

Web Price
$66.24 / each
Qty

Product Details

3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.25 mm
10mm x 8mm
10 mm
8 mm
+0.025/-0.000 mm
Round
25.4
United States
Aluminum
Bright
7075
25.4 mm
Yes
1.7 N-m
0.85 N-m
4.6 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
(2) Hex Socket Cap Screw
Motion Control Coupling
15.9 mm
0.625
15.90
14.7 mm
14.7 mm
Aluminum
Aluminum
3 Degrees
+/-0.010
0.015 in
6,000 RPM
225 Degrees F
225
107 Degrees C
6,000 RPM
3.39 N-m
-40 Degrees C
0.000009275 kgf/m sq
4
2
25.4 mm
1
25.40
31.8 mm
1.25
31.80
1
0.38 mm
30 in-lb
Alloy Steel
Black Oxide
M4
M4
M4
Cap Screw
PCMR
Clamp On
1 Piece Clamp
+0.000/-0.013 mm
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
4 Beam Clamp
Metric
30
0.56 N-m/Deg
0.2
Yes
