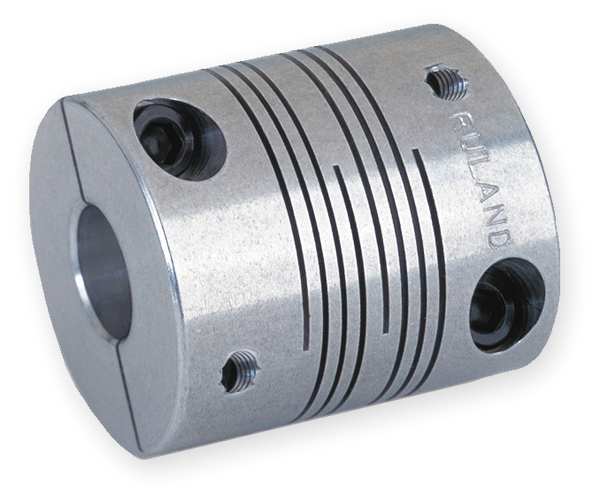

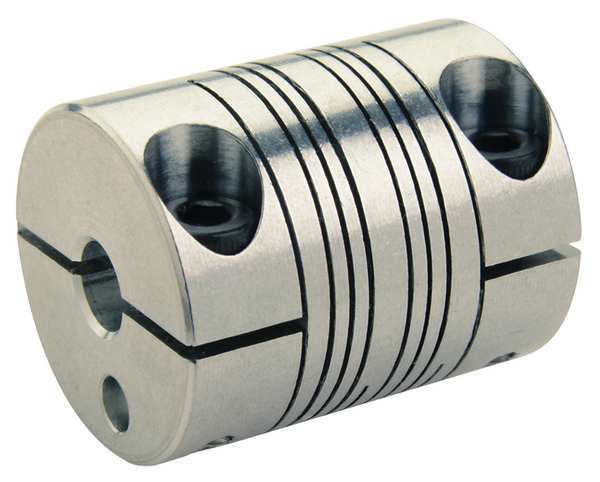

Coupling, 4 Beam Clamp, Bore 12 x 6 mm
Coupling, 4 Beam Clamp, Bore 12 x 6 mm
Coupling, 4 Beam Clamp, Bore 12 x 6 mm
Coupling, 4 Beam Clamp, Bore 12 x 6 mm

Coupling, 4 Beam Clamp, Bore 12 x 6 mm

  • Ruland
  • Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 12 mm, Bore Diameter 2 6 mm, Coupling Material Aluminum, Coupling Outside Diameter 28.6 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.84 N-m, Axial Motion 0.25 mm, Overall Length 38.1 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.51 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 17.6 mm

    graingerSKU: null, mscSKU: null, zoro_no: G1069187, mongo_id: 65bbe5e63aaddbd5a9ff49bb

Web Price
$68.74 / each
Qty

Product Details

3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.25 mm
12mm x 6mm
12 mm
6 mm
+0.025/-0.000 mm
Round
28.6
United States
Aluminum
Bright
7075
28.6 mm
Yes
1.92 N-m
0.96 N-m
4.6 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
(2) Hex Socket Cap Screw
Motion Control Coupling
19.05 mm
0.750
19.05
17.6 mm
17.6 mm
Aluminum
Aluminum
3 Degrees
+/-0.010
0.015 in
6,000 RPM
225 Degrees F
225
107 Degrees C
6,000 RPM
3.84 N-m
-40 Degrees C
0.000006349 kgf/m sq
4
2
28.6 mm
1.125
28.60
38.1 mm
1.50
38.10
1
0.38 mm
34 in-lb
Alloy Steel
Black Oxide
M4
M4
M4
Cap Screw
PCMR
Clamp On
1 Piece Clamp
+0.000/-0.013 mm
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
4 Beam Clamp
Metric
34
0.51 N-m/Deg
0.22
Yes
