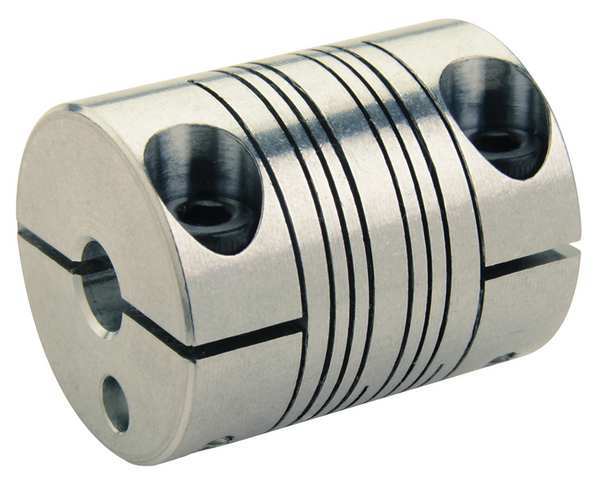

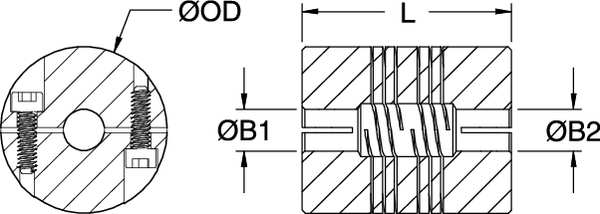

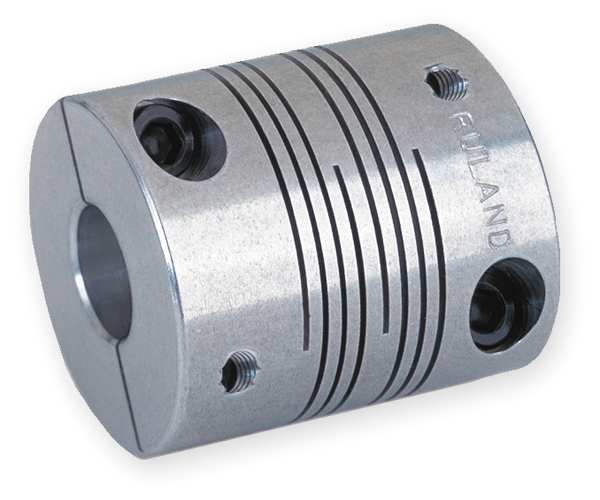

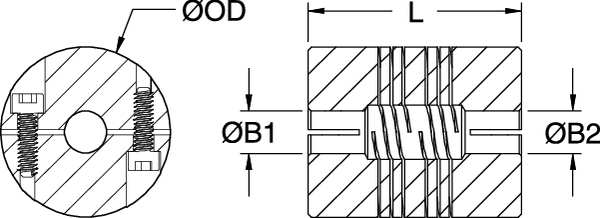

Coupling, 4 Beam Clamp, Bore 5/16 x 1/4 In
Web Price
$78.61
/ each
Product Details
3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.01 in
5/16 in x 1/4 in
5/16 in
1/4 in
+0.001/-0.000 in
Round
28.6
United States
Aluminum
Bright
7075
1 1/8 in
Yes
22 lb-in
11 lb-in
4.6 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
(2) Hex Socket Cap Screw
Motion Control Coupling
0.75 in
0.750
19.05
0.7 in
0.7 in
Aluminum
Aluminum
3 Degrees
+/-0.010
0.015 in
6,000 RPM
225 Degrees F
225
225 Degrees F
6,000 RPM
44 in-lb
-40 Degrees F
0.0217 lb-in sq
4
2
1.125 in
1.125
28.60
1 1/2 in
1.50
38.10
1
0.015 in
44 in-lb
Alloy Steel
Black Oxide
M4
M4
M4
Cap Screw
PCR
Clamp On
1 Piece Clamp
+0.0000/-0.0005 in
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
4 Beam Clamp
Inch
44
9.09 in-lb/Deg
0.11
Yes
