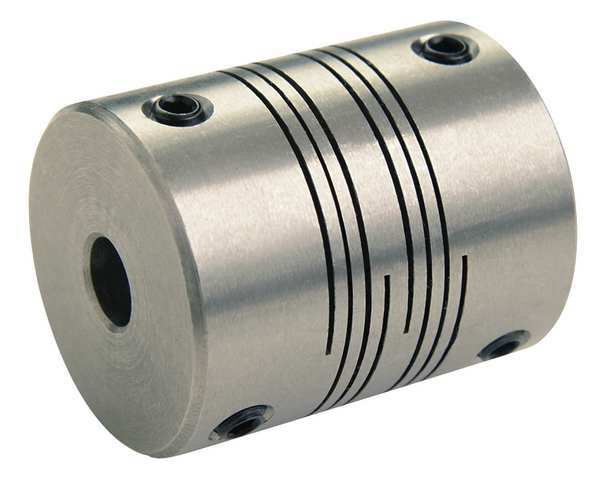

Coupling, 4 Beam Set Screw, 9mmx9mm
Web Price
$68.94
/ each
Product Details
3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.25 mm
9mm x 9mm
9 mm
9 mm
+0.025/-0.000 mm
Round
1.25 in
31.8
United States
Aluminum
Bright
7075
31.8 mm
No
3.39 N-m
1.7 N-m
7.2 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
(4) Set Screw
Motion Control Coupling
17.02 mm
0.67
17.02
17.6 mm
17.6 mm
Aluminum
Aluminum
3 Degrees
+/-0.01
9 mm
0.015 in
6,000 RPM
225 Degrees F
225 Degrees
107 Degrees C
6,000 RPM
6.78 N-m
9
-40 Degrees C
0.000009948 kgf/m sq
4
4
31.8 mm
1.25
31.8 mm
38.1 mm
1.5
38.1
1
0.38 mm
60 in-lb
Alloy Steel
Black Oxide
M6
M6
M6
Set Screw
PSMR
2 (120 Degrees )
Set Screw
1 Piece Set Screw
+0.000/-0.013 mm
PSMR32
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
4-Beam Set Screw
Metric
60
1.61 N-m/Deg
0.07
Yes
