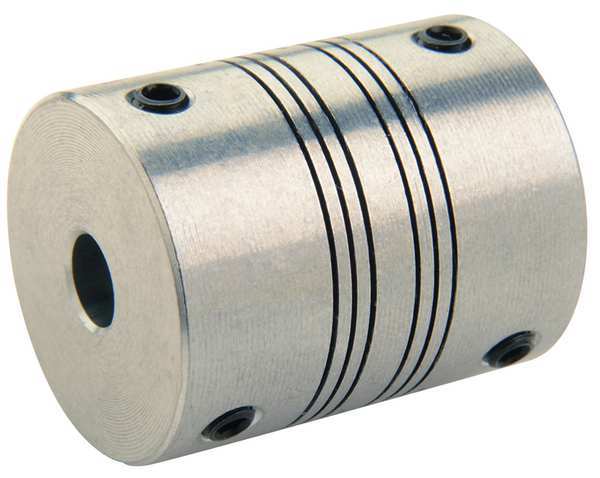

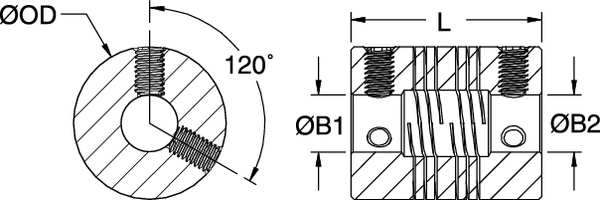

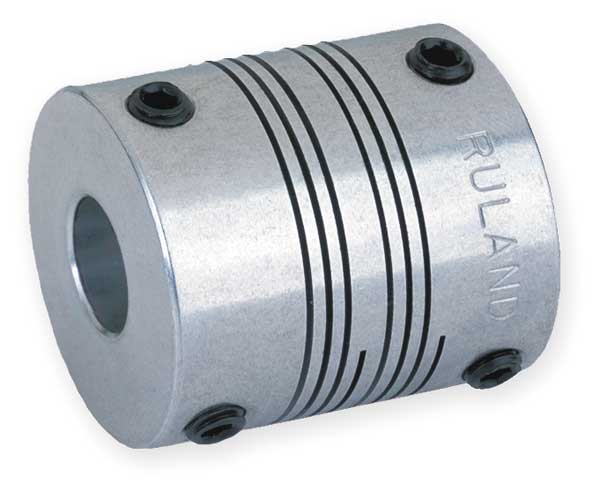

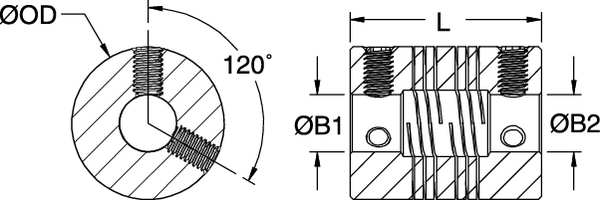

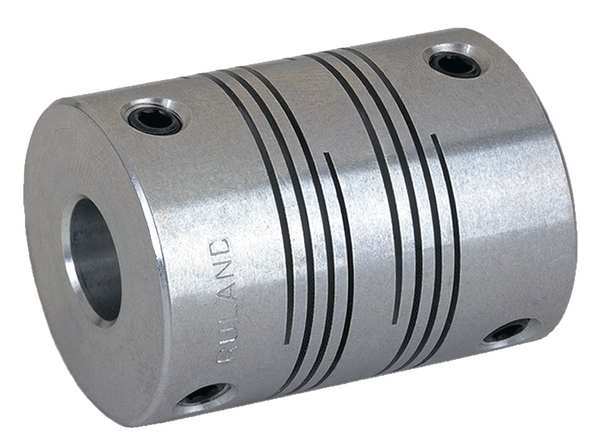

Coupling, 4 Beam Set Screw, Bore 5 x 4 mm
Coupling, 4 Beam Set Screw, Bore 5 x 4 mm
Coupling, 4 Beam Set Screw, Bore 5 x 4 mm
Coupling, 4 Beam Set Screw, Bore 5 x 4 mm
Coupling, 4 Beam Set Screw, Bore 5 x 4 mm

Coupling, 4 Beam Set Screw, Bore 5 x 4 mm

  • Ruland
  • Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5 mm, Bore Diameter 2 4 mm, Coupling Material Aluminum, Coupling Outside Diameter 19.1 mm, Maximum Speed 6,000 RPM, Maximum Torque 1.92 N-m, Axial Motion 0.13 mm, Overall Length 22.9 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.44 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 10.7 mm

    graingerSKU: null, mscSKU: null, zoro_no: G1656697, mongo_id: 65bbe5e63aaddbd5a9ff4992

Web Price
$47.49 / each
Qty

Product Details

3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.13 mm
5mm x 4mm
5 mm
4 mm
+0.025/-0.000 mm
Round
19.1
United States
Aluminum
Bright
7075
19.1 mm
Yes
0.96 N-m
0.48 N-m
1.76 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
(2) Set Screw
Motion Control Coupling
11.45 mm
0.450
11.45
10.7 mm
10.7 mm
Aluminum
Aluminum
3 Degrees
+/-0.005
0.008 in
6,000 RPM
225 Degrees F
225
107 Degrees C
6,000 RPM
1.92 N-m
-40 Degrees C
0.000000731 kgf/m sq
4
2
19.1 mm
0.750
19.10
22.9 mm
0.90
22.90
1
0.2 mm
17 in-lb
Alloy Steel
Black Oxide
M4
M4
M4
Set Screw
PSMR
Set Screw
1 Piece Set Screw
+0.000/-0.013 mm
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
4 Beam Set Screw
Metric
17
0.44 N-m/Deg
0.26
Yes

Viewed together
