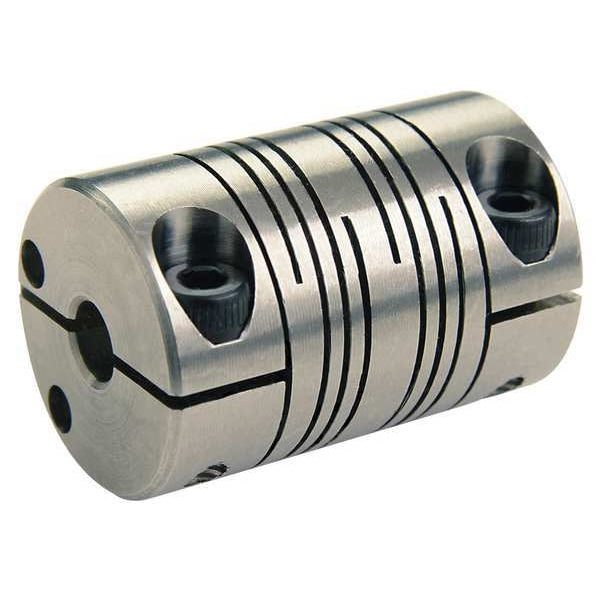

Coupling, 6 Beam Clamp, 16mmx11mm
Web Price
$118.74
/ each
Product Details
3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.38 mm
16mm x 11mm
16 mm
11 mm
+0.025/-0.000 mm
Round
1.642 in
41.71
United States
Aluminum
Bright
7075
38.1 mm
Yes
5.37 N-m
2.68 N-m
9.5 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
(2) Hex Socket Cap Screw
Motion Control Coupling
26.47 mm
1.042
26.47
27.3 mm
27.3 mm
Aluminum
Aluminum
3 Degrees
+/-0.03
16 mm
0.015 in
6,000 RPM
225 Degrees F
225 Degrees
107 Degrees C
6,000 RPM
10.73 N-m
11
11 mm
-40 Degrees C
0.000030032 kgf/m sq
6
2
38.1 mm
1.5
38.1
57.2 mm
2.25
57.2
1
0.76 mm
95 in-lb
Alloy Steel with Nypatch
Black Oxide
M5
M5
M5
Cap Screw
FCMR
Clamp On
1 Piece Clamp
+0.000/-0.013 mm
FCMR38
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
6-Beam Clamp
Metric
95
2.56 N-m/Deg
0.044
Yes
