Home / Coupling, 6 Beam Clamp, Bore 1/2 x 5/16 In

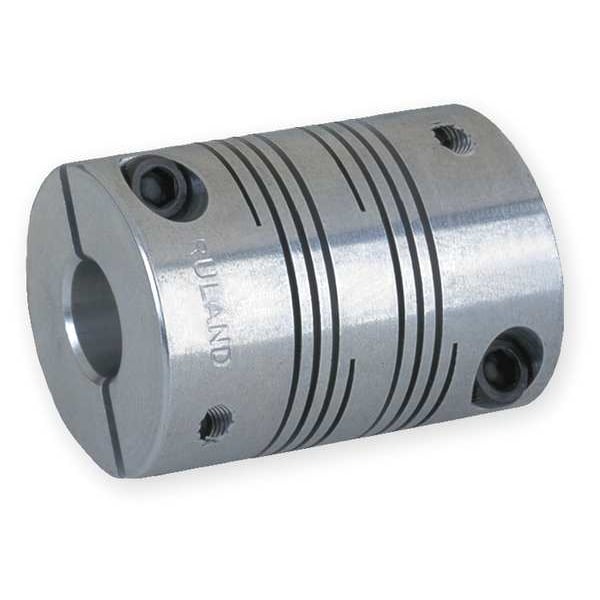

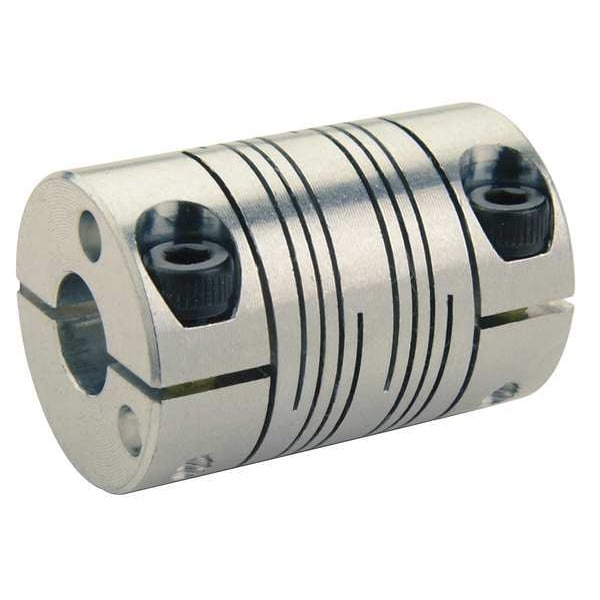

Coupling, 6 Beam Clamp, Bore 1/2 x 5/16 In
Coupling, 6 Beam Clamp, Bore 1/2 x 5/16 In
Coupling, 6 Beam Clamp, Bore 1/2 x 5/16 In

Coupling, 6 Beam Clamp, Bore 1/2 x 5/16 In

  • Ruland
  • Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 1/2 in, Bore Diameter 2 5/16 in, Coupling Material Aluminum, Coupling Outside Diameter 1 1/4 in, Maximum Speed 6,000 RPM, Maximum Torque 50 in-lb, Axial Motion 0.01 in, Overall Length 1 3/4 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 13.89 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 0.8 in

    graingerSKU: 2ADF2, mscSKU: , zoro_no: G3371042, mongo_id: 65bbe6b63aaddbd5a904a92d

Web Price
$89.86 / each
Qty

Product Details

3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.01 in
1/2 in x 5/16 in
1/2 in
5/16 in
+0.001/-0.000 in
Round
1.459 in
United States
Aluminum
Bright
7075
1 1/4 in
Yes
25 lb-in
12.5 lb-in
9.5 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
(2) Hex Socket Cap Screw
Motion Control Coupling
0.875 in
0.875
0.8 in
0.8 in
Aluminum
Aluminum
3 Degrees
+/-0.010
0.015 in
6,000 RPM
225 Degrees F
225
225 Degrees F
6,000 RPM
50 in-lb
-40 Degrees F
0.0401 lb-in sq
6
2
1.25 in
1.250
1 3/4 in
1.75
1
0.015 in
50 in-lb
Alloy Steel with Nypatch
Black Oxide
M5
M5
M5
Cap Screw
FCR
Clamp On
1 Piece Clamp
+0.0000/-0.0005 in
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
6 Beam Clamp
Inch
50
13.89 in-lb/Deg
0.072
Yes
