Home / Coupling, 6 Beam Clamp, Bore 1/4 x 3/16 In

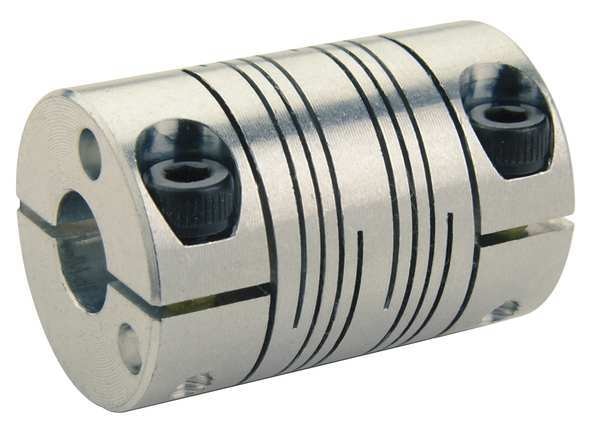

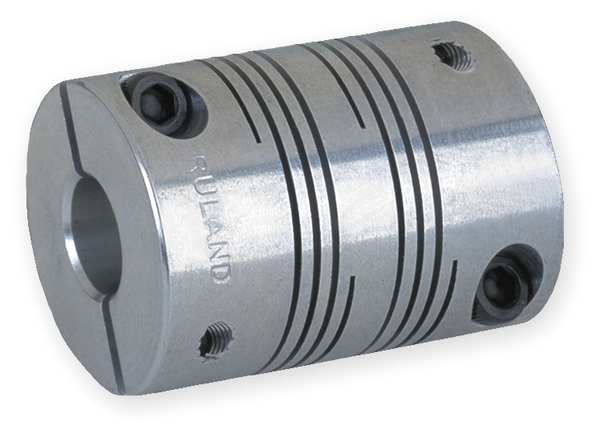

Coupling, 6 Beam Clamp, Bore 1/4 x 3/16 In
Coupling, 6 Beam Clamp, Bore 1/4 x 3/16 In
Coupling, 6 Beam Clamp, Bore 1/4 x 3/16 In

Coupling, 6 Beam Clamp, Bore 1/4 x 3/16 In

  • Ruland
  • Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 1/4 in, Bore Diameter 2 3/16 in, Coupling Material Aluminum, Coupling Outside Diameter 5/8 in, Maximum Speed 6,000 RPM, Maximum Torque 13 in-lb, Axial Motion 0.005 in, Overall Length 1 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 2.78 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 0.5 in

    graingerSKU: 2ACU7, mscSKU: , zoro_no: G3135291, mongo_id: 65bbe8569a749db822788ac5

Web Price
$66.44 / each
Qty

Product Details

3 Degrees
Light-Duty Power Transmission, Servo Motors to Lead Screws
0.005 in
1/4 in x 3/16 in
1/4 in
3/16 in
+0.001/-0.000 in
Round
0.796 in
United States
Aluminum
Bright
7075
5/8 in
Yes
6.5 lb-in
3.25 lb-in
1.21 N-m
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single or Four Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Spiral Coupling With Nypatch Anti-Vibration Hardware, Two Sets of Three Spiral Cuts, Zero-Backlash
Bright
Angular Misalignment, Axial Motion, Parallel Misalignment
Angular, Axial, Parallel
Yes
(2) Hex Socket Cap Screw
Motion Control Coupling
0.5 in
0.500
0.5 in
0.5 in
Aluminum
Aluminum
3 Degrees
+/-0.005
0.008 in
6,000 RPM
225 Degrees F
225
225 Degrees F
6,000 RPM
13 in-lb
-40 Degrees F
0.0013 lb-in sq
6
2
0.625 in
0.625
1 in
1.00
1
0.008 in
13 in-lb
Alloy Steel
Black Oxide
M3
M3
M2.5
Cap Screw
FCR
Clamp On
1 Piece Clamp
+0.0000/-0.0005 in
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
6 Beam Clamp
Inch
13
2.78 in-lb/Deg
0.36
Yes
