Home / Coupling, Bellows Clamp, 20mmx12mm

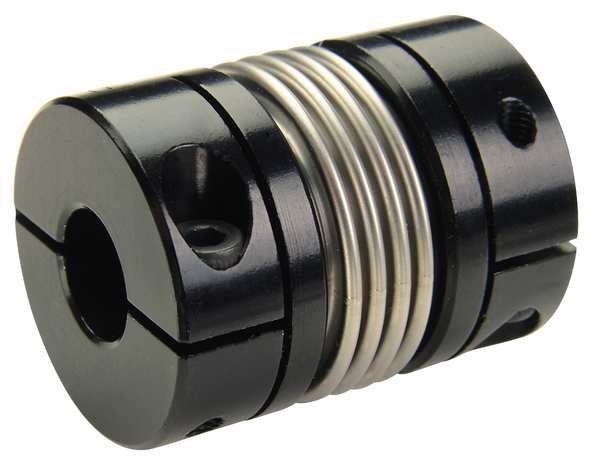

Coupling, Bellows Clamp, 20mmx12mm

Coupling, Bellows Clamp, 20mmx12mm

  • Ruland
  • Motion Control Coupling, Bore Diameter 1 20 mm, Bore Diameter 2 12 mm, Coupling Outside Diameter 41.3 mm, Maximum Speed 10,000 RPM, Maximum Torque 28 N-m, Hub Material Aluminum, Overall Length 50.8 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 41.3 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 24 mm, Length Through Bore 2 24 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 14 N-m

    graingerSKU: 30VF91, mscSKU: , zoro_no: G7799933, mongo_id: 65bbe7673aaddbd5a90922a6

Web Price
$141.24 / each

Product Details

2 Degrees
Encoders, Stepper / Servo
0.5 mm
Stainless Steel
None
MIL-A-8625 Type II; Class 2 and ASTM B580 Type B
20mm x 12mm
20 mm
12 mm
+0.03 mm / -0.00 mm
Round
1.625 in
41.3
41.3 mm
United States
41.3 mm
Yes
14 N-m
7 N-m
4.6 N-m
Balanced Design for Reduced Vibration, Lightweight and has Low Inertia, Zero Backlash
Black Anodized
Angular, Axial, Parallel
Yes
18.05 mm
Aluminum
Sulfuric Anodized MIL-A-8625 Type II; Class 2 and ASTM B580 Type B Black Anodize
2024
(2) Hex Socket Cap Screw
Motion Control Coupling
25.4 mm
1.000
25.4
24 mm
24 mm
Aluminum
Aluminum
2 Degrees
+/-0.020
20 mm
0.01 in
10,000 RPM
200 Degrees F
200 Degrees
20 mm
93 Degrees C
10,000 RPM
28 N-m
12.0
12 mm
-40 Degrees C
0.00003032 kgf/m sq
2
41.3 mm
1.625
41.3
50.8 mm
2.029
50.80
1
0.25 mm
250 in-lb
Alloy Steel
Black Oxide
M4
M4
M4
Cap Screw
Clamp On
1 Piece Clamp
+0.000 mm / -0.013 mm
MBC41
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Bellows Clamp
Metric
250
63 N-m/Deg
550
Yes
