Home / Coupling, Oldham Coupling Disc

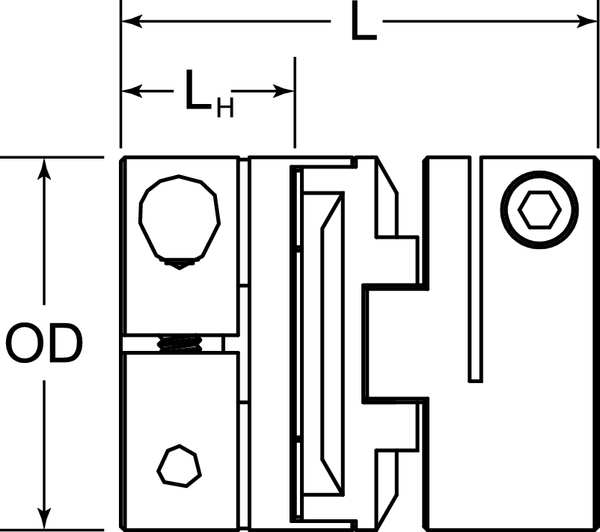

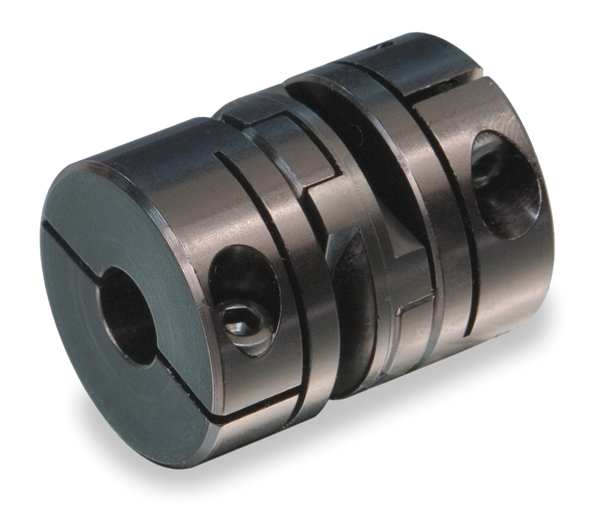

Coupling, Oldham Coupling Disc
Coupling, Oldham Coupling Disc
Coupling, Oldham Coupling Disc

Coupling, Oldham Coupling Disc

  • Ruland
  • Motion Control Coupling, Angular Misalignment 0.5 Degrees , Axial Motion 0.004 in, Coupling Size OD19, OD12, Outside Diameter 3/4 in, Over-Standard Parallel Misalignment 0.075 in, Parallel Misalignment 0.008 in, Break Torque 85 in-lb, Disc Material Nylon, Maximum Torque 5 in-lb, Torsional Stiffness 7.1 in-lb/Deg, System of Measurement Inch, Maximum Speed 4,500 RPM, For Hub Diameter 3/4 in, Disc Material Grade 11
Web Price
$13.11 / each
Qty

Product Details

0.5 Degrees
Applications With High Parallel Misalignment (Up to 10% of the Coupling OD)
0.004 in
85 in-lb
White
United States
OD19, OD12
Plain
Nylon
11
Nylon
High Torsional Stiffness, Highly Customizable Coupling, Three-Piece Design, Zero-Backlash
Plain
0.750 in / 19.1mm
3/4 in
Angular, Axial, Parallel
Yes
Oldham Coupling Disc
Nylon
Nylon
0.5 Degrees
+/-0.004
0.008 in
4,500 RPM
130 Degrees F
130 Degrees F
4,500 RPM
5 in-lb
Yes
-10 Degrees F
0.750
19.10
3/4 in
0.075 in
1
0.008 in
5 in-lb
Conflict Minerals Compliant, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Oldham Coupling Disc
Inch
5.00
7.1 in-lb/Deg
0.14
0.002159 lb
Yes
