Home / Coupling, Oldham Coupling Disc

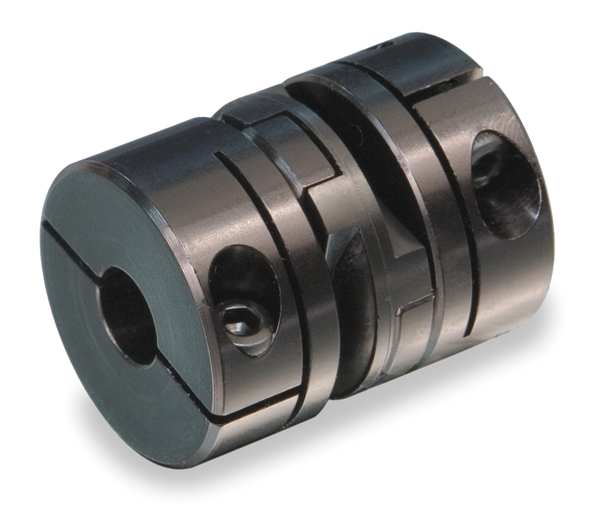

Coupling, Oldham Coupling Disc
Coupling, Oldham Coupling Disc
Coupling, Oldham Coupling Disc

Coupling, Oldham Coupling Disc

  • Ruland
  • Motion Control Coupling, Angular Misalignment 0.5 Degrees , Axial Motion 0.006 in, Coupling Size OD21, OD33, Outside Diameter 1 5/16 in, Over-Standard Parallel Misalignment 0.131 in, Parallel Misalignment 0.008 in, Break Torque 300 in-lb, Disc Material Nylon, Maximum Torque 18 in-lb, Torsional Stiffness 19.2 in-lb/Deg, System of Measurement Inch, Maximum Speed 4,500 RPM, For Hub Diameter 1 21/64 in, Disc Material Grade 11
Web Price
$24.31 / each
Qty

Product Details

0.5 Degrees
Applications With High Parallel Misalignment (Up to 10% of the Coupling OD)
0.006 in
300 in-lb
White
United States
OD21, OD33
Plain
Nylon
11
Nylon
High Torsional Stiffness, Highly Customizable Coupling, Three-Piece Design, Zero-Backlash
Plain
1.313 in / 33.3mm
1 21/64 in
Angular, Axial, Parallel
Yes
Oldham Coupling Disc
Nylon
0.5 Degrees
+/-0.006
0.008 in
4,500 RPM
130 Degrees F
130 Degrees F
4,500 RPM
18 in-lb
Yes
-10 Degrees F
1 5/16 in
0.131 in
1
0.008 in
18 in-lb
Conflict Minerals Compliant, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Inch
19.2 in-lb/Deg
0.052
0.019645 lb
Yes
