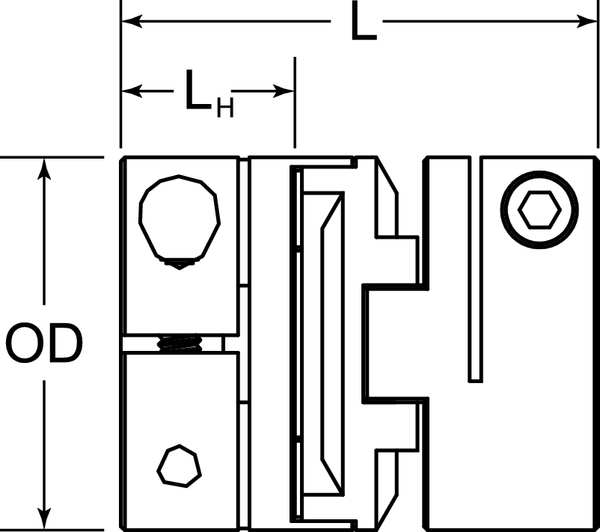

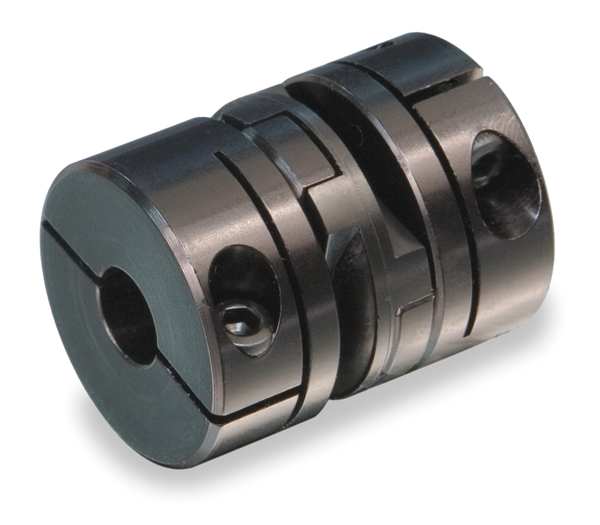

Coupling, Oldham Coupling Disc
Coupling, Oldham Coupling Disc
Coupling, Oldham Coupling Disc

Coupling, Oldham Coupling Disc

  • Ruland
  • Motion Control Coupling, Angular Misalignment 0.5 Degrees , Axial Motion 0.004 in, Coupling Size OD13, OD8, Outside Diameter 1/2 in, Over-Standard Parallel Misalignment 0.05 in, Parallel Misalignment 0.004 in, Break Torque 25 in-lb, Disc Material Nylon, Maximum Torque 1.5 in-lb, Torsional Stiffness 3.4 in-lb/Deg, System of Measurement Inch, Maximum Speed 4,500 RPM, For Hub Diameter 1/2 in, Disc Material Grade 11
Web Price
$6.74 / each
Qty
Minimum order: 2

Product Details

0.5 Degrees
Applications With High Parallel Misalignment (Up to 10% of the Coupling OD)
0.004 in
25 in-lb
1.313
White
United States
OD13, OD8
Plain
Nylon
11
Nylon
High Torsional Stiffness, Highly Customizable Coupling, Three-Piece Design, Zero-Backlash
Plain
0.500 in / 12.7mm
1/2 in
Angular, Axial, Parallel
Yes
Oldham Coupling Disc
Nylon
Nylon
0.5 Degrees
+/-0.002
0.004 in
4,500 RPM
130 Degrees F
130 Degrees F
4,500 RPM
1.5 in-lb
Yes
-10 Degrees F
0.500
12.70
1/2 in
0.05 in
1
0.004 in
1.5 in-lb
Conflict Minerals Compliant, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Oldham Coupling Disc
Inch
1.50
3.4 in-lb/Deg
0.29
0.000901 lb
Yes
