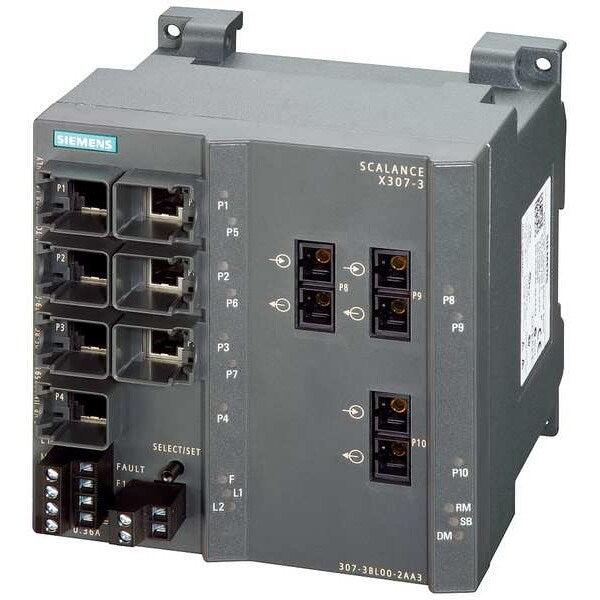

SCALANCE X307-3, managed plus IE switch,

SKU
Brand Scalance
Categories
Description IE Switch, Features Error Signaling Contact with Select/Set Button, Integrated Redundancy Manager, LED Diagnostics, Network Management, PROFINET IO Device, Port Type RJ45, IP Rating IP30, Mounting Location DIN Rail, Network Interface 10/100/1000 Mbit/s, Number of Ports 7, Resistance Properties Not Applicable, Switch Management Managed, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Overall Depth 4 7/8 in, Overall Height 4 7/8 in, Overall Width 4 3/4 in
graingerSKU: , mscSKU: , zoro_no: G8360433, mongo_id: 65bbe8bc22d7a989a9912775

Web Price

$7,187.49 / each

Qty

Product Details

Country of Origin (subject to change) Germany

Depth (In.) 4.84 in

Description/Special Features Error Signaling Contact with Select/Set Button, Integrated Redundancy Manager, LED Diagnostics, Network Management, PROFINET IO Device

Features Error Signaling Contact with Select/Set Button, Integrated Redundancy Manager, LED Diagnostics, Network Management, PROFINET IO Device

Height (In.) 4.92 in

Input Voltage 24V DC

IP Rating IP30

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature 14 Degrees F

Network Interface 10/100/1000 Mbit/s

Number of Ports 7

Operating Temp. Range (C) -10 Degrees to 60 Degrees

Operating Temp. Range (F) 14 to 140

Operation Description Managed Switch

Overall Depth 4 7/8 in

Overall Height 4 7/8 in

Overall Width 4 3/4 in

Package Quantity 1

Port Type RJ45

Ports 7/3

Resistance Properties Not Applicable

Speed 10/100/1000 Mbit/s

Standards CSA C22.2 No. 213-M1987, Class 1/Division 2/Group A, B, C, D/T4, Class 1/Zone 2/Group IIC/T4, CSA C22.2 No. 60950-1, EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X, EN 61000-6-2:2005, EN 61000-6-4:2007, EN 61000-6-4:2007 (Class A), FM3611: Class 1, Division 2, Group A, B, C, D/T4, Class 1, Zone 2, Group IIC, T4, UL 1604, UL 2279-15, UL 60950-1

Switch Management Managed

Type 10 Port Managed

Width (In.) 4.72 in
