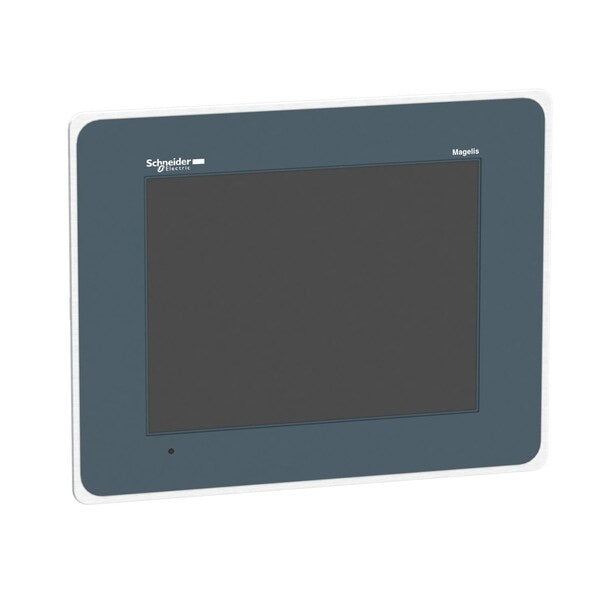

121 Color Touch Panel Svga Stainless

SKU
Brand Schneider Electric
Categories
Description 121 Color Touch Panel Svga Stainless
graingerSKU: , mscSKU: , zoro_no: G0860627, mongo_id: 65bbe8a322d7a989a9908748

Web Price

$8,433.74 / each

Qty

Product Details

Accessory Type 121 Color Touch Panel Svga Stainless

Ambient Air Temperature For Operation 0-55ÃÂ°C

Ambient Air Temperature For Storage -20-60ÃÂ°C

Backlight Lifespan 50000 hours white 25ÃÂ°C

Battery Type lithium internal RAM 100 days 5 day(s) 10 year(s)

Brightness 16 levels by touch panel || 16 levels by software

Character Font Japanese (ANK, Kanji); ASCII (European characters); Taiwanese (traditional Chinese); Chinese (simplified Chinese); Korean

Country of Origin (subject to change) China

Data Backed Up 512 kB internal RAM SRAM)

Data Storage Equipment SD card, <= 32 GB || SDHC card, <= 32 GB

Depth 56 mm

Display Colour 65536 colours

Display Resolution 800 x 600 pixels SVGA

Display Size 12.1 inch

Display type backlit colour TFT LCD

Downloadable Protocols Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP

Enclosure Material PPT

Fixing Mode by 8 nuts || by 4 L brackets

Front Material stainless steel 304

Height 285 mm

Inrush Current 30 A

Integrated Connection Type COM1 serial link SUB-D 9 RS232C 2400 to 115200 bps || COM2 serial link RJ45 RS485 2400 to 115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B

Ip Degree Of Protection IP20 IEC 60529 rear panel) || IP66K IEC 60529 front panel) || IP66K DIN 40050-9 front panel)

Local Signalling status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed

Maximum Power Consumption In W 12 W when power is not supplied to external devices || 7 W when backlight is OFF || 8 W when backlight is dimmed || 17 W

Memory Description flash EPROM, 96 MB

Nema Degree Of Protection NEMA 4X front panel (indoor use)

Operating Altitude < 6561.68 ft (2000 m)

Operating System Harmony

Package Quantity 1

Product Certifications CE || C-tick || cULus || KCC || UKCA || UKEX

Product Mounting flush mounting

Product Or Component Type advanced touchscreen panel

Provided Equipment 1 protective cover

Relative Humidity 10-90 % without condensation

Resistance To Electrostatic Discharge 6 kV contact discharge IEC 61000-4-2 level 3

Shock Resistance 147 m/sÃÂ² 3 chocks in each direction X, Y and Z EN/IEC 61131-2

Software Designation Vijeo Designer configuration software >= V6.1

Standards IEC 61000-6-2 || UL 508 || EN 61131-2

Supply external source

Supply Voltage Limits 19.2-28.8 V

Terminal Type touchscreen display

Touch Panel resistive film, 1000000 cycles

Touch Sensitive Zone 1024 x 1024

Type Of Cooling natural convection

Vibration Resistance 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2

Width 359 mm

[Us] Rated Supply Voltage 24 V DC
