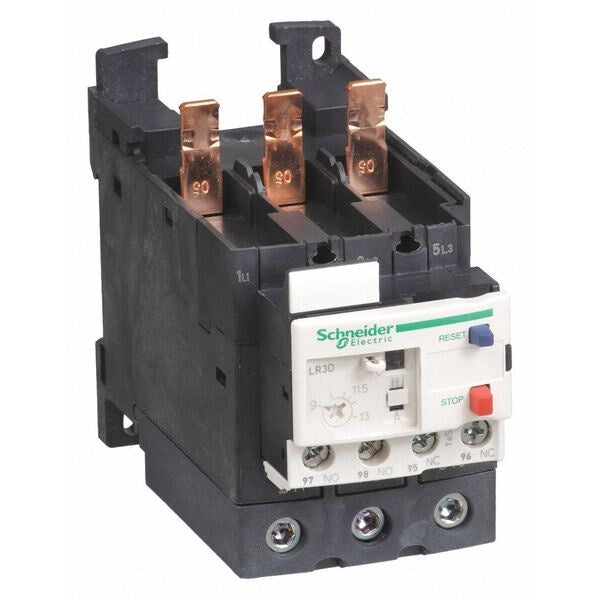

1625A Class 10 Olr W/ Everlink Terminal

SKU
Brand Schneider Electric
Categories
Description IEC Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 25 A, Minimum Overload Relay Current Setting 17 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
graingerSKU: , mscSKU: , zoro_no: G3156505, mongo_id: 65bbe87122d7a989a98f6d48

Web Price

$192.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C without derating IEC 60947-4-1

Ambient Air Temperature For Storage -60-70ÃÂ°C

Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contact Form 1NO/1NC

Body Depth 4.84 in

Body Depth - Relay 4.84 in

Body Height 2.76 in

Body Height - Relay 2.76 in

Body Width 2.17 in

Body Width - Relay 2.17 in

Climatic Withstand IACS E10

Compatible with Series TeSys Deca

Connections - Terminals control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÃÂ² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÃÂ² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mmÃÂ² solid without cable end

Control Type Red push-button stop || Blue push-button reset

Country of Origin (subject to change) France

Depth 123 mm

Device Short Name LR3D

Dielectric Strength 1.89 kV 50 Hz IEC 60947-1

Flame Retardance V1 conforming to UL 94

Frame / Series / Class / Code Class 10

Height 70 mm

Includes Mounting Hardware Not Applicable

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating IP20

Item - Relay IEC Style Overload Relay

Kit Required for Retrofit Mtg. No

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 25 A

Maximum Voltage Rating 690V AC

Mechanical Robustness shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 17 A

Mounting Style Direct To Contactor

Mounting Support plate, with specific accessories || rail, with specific accessories || under contactor

NEMA Size Not Applicable

Network Frequency 0 to 400 Hz

Network Type DC || AC

Number of Poles 3

Overall Height 2.76 in

Overall Height - Relay 2.76 in

Overload Protection Type Thermal

Overload Relay Current Range 90 to 150A

Package Quantity 1

Permissible Current 0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit

Phase Failure Sensitivity tripping current 130 % of Ir on two phase, the last one at 0

Product Certifications IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA

Product Compatibility LC1D50A || LC1D40A || LC1D65A

Product Name TeSys LRD || TeSys Deca

Product Or Component Type non differential thermal overload relay

Range TeSys || TeSys Deca

Relay Application motor protection

Relay Style IEC

Reset Type Auto, Manual

Reset Type - Relay Manual

Sensing Method Thermal

Separate Mounting No

Standards CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Temperature Compensation -20-60ÃÂ°C

Terminal Connection Type Screw Clamp Terminals

Thermal Overload Class class 10A IEC 60947-4-1

Thermal Protection Adjustment Range 17-25 A

Tightening Torque control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors

Trip Class 10A

Trip Class - Overload 10A

Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1

Use With - Contactors and Starters Mfr. Series LC1F115 Contactors

Width 55 mm

[Ith] Conventional Free Air Thermal Current 5 A signalling circuit

[Ue] Rated Operational Voltage 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
