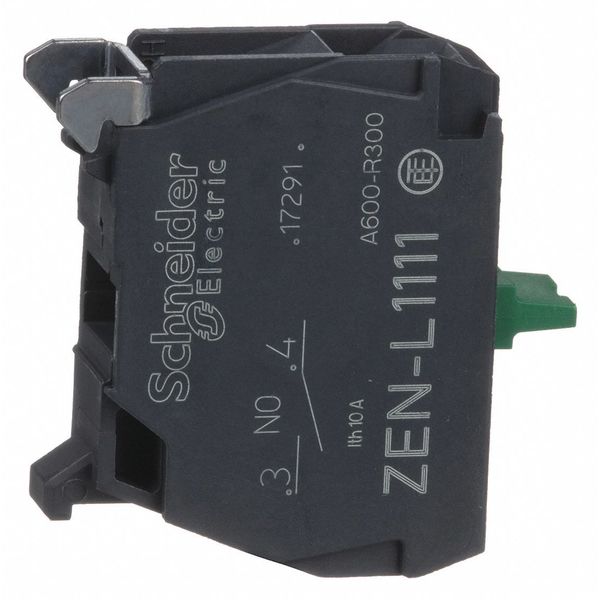

1NO 22mm Screw-Clamp Push Button Contact Block

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1NO, Contact Rating 10A @ 600V AC, For Use With Schneider Empty Enclosure, Action Momentary, 22 mm, Application Control Station, NEMA Contact Rating Designation A600/Q600, Color Black/Green, Terminal Connection Screw/Clamp, Standards CSA, UL
graingerSKU: 6JC91, mscSKU: 77802684, zoro_no: G3022442, mongo_id: 65bbe9ba22d7a989a9972184

Web Price

$17.24 / each

Qty

Product Details

Action Momentary

Additional Information mounting on integrated plate in the box

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Application Control Station

Color Black/Green

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO

Country of Origin (subject to change) France

Device Short Name ZENL

Electrical Composition Code SR1 3 ) || SR2 2 ) || MR1 2 )

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4

For Use With Schneider Empty Enclosure

Ip Degree Of Protection IP20 IEC 60529

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 10000000 cycles

Mounting Of Block rear mounting

NEMA Contact Rating Designation A600/Q600

Operating Force 2.3 N NO changing electrical state

Operating Torque 0.05 N.m NO changing electrical state

Operating Travel 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Package Quantity 1

Positive Opening without

Product Destination for XB5 ÃÂ 22 mm control and signalling units || for XAPS control station

Product Or Component Type contact block

Protective Treatment TH

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA, UL

Terminal Connection Screw/Clamp

Tightening Torque 0.8-1.2 N.m EN 60947-1

Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
