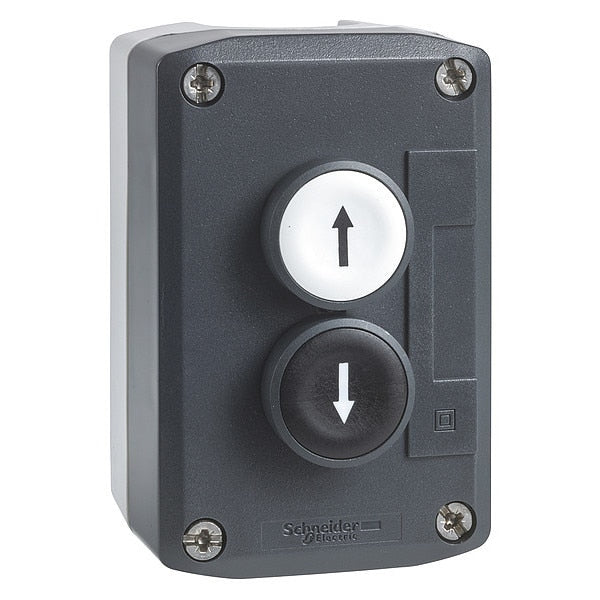

2 Button Control Station W/ Arrows

SKU
Brand Schneider Electric
Categories
Description 2 Button Control Station W/ Arrows
graingerSKU: 48U099, mscSKU: , zoro_no: G0861360, mongo_id: 65bbe7053aaddbd5a906b39b

Web Price

$146.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Entry 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm

Colour Of Base Of Enclosure light grey RAL 7035)

Colour Of Cover dark grey RAL 7016)

Colour Of Marking black marking when white caps || white marking when green, red or black caps

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Control Station Application two functions

Control Station Composition 1 flush push-button, white 1 NO, black up arrow || 1 flush push-button, black 1 NO, white down arrow

Country of Origin (subject to change) France

Cover Color Dark Gray RAL 7016)

Device Short Name XALD

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4

Electrical Shock Protection Class class II IEC 60536

Enclosure Base Cover Light Gray RAL 7035)

Ik Degree Of Protection IK03 EN 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

Marking Color Black marking when white caps; White marking when green, red or black caps

Marking Location marking on push-button

Material polycarbonate

Mechanical Durability 5000000 cycles

Nema Degree Of Protection NEMA 13 || NEMA 4X

Operating Force 3.8 N NO changing electrical state

Operating Travel 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Profile 2 flush push-buttons

Operators Description white ''up arrow'' 1 NO - black ''down arrow'' 1 NO

Package Quantity 1

Positive Opening without

Product Certifications UL Listed || CSA

Product Destination for XB5 ÃÂ 22 mm control and signalling units

Product Or Component Type complete control station

Protective Treatment TH

Rated Operational Current 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1; 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Standards JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1

Tightening Torque 0.8-1.2 N.m EN/IEC 60947-1

Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
